|Product Name:||Pressure Control Valve With Water Tanks Level Control EPOXY Coated||Material:||Ductile Iron GJS500-7|
|Diaphragm:||Nylon Reinfocement With EPDM|
Water System Float Control Valve,
AISI Flange Float Control Valve,
DN800 Float Control Valve

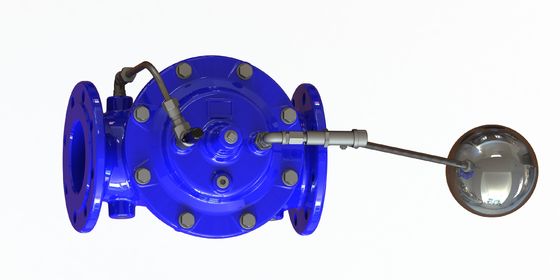

Pressure Control Valve With Water Tanks Level Control EPOXY Coated
Remote control float valve
1, 100 x remote-controlled floating ball valve - an overview
100 x remote-controlled floating ball valve consists of the main valve, needle valve, ball valve, ball valves, hydraulic control micro filter, etc to take over the system, after setting, automatic control level.This product directly using the liquid level control, and do not need other devices and energy sources, convenient maintenance, high accuracy of liquid level control, is not affected by water pressure, the sealing is reliable.Widely used in high-rise buildings, living quarters and other water supply network system of liquid level control of water tower, pool and other facilities.
Pressure rating: PN10, PN16, PN25
Diaphragm type: 3/4 "~ 450
Piston: DN350 ~ 800
2,100X function and work principle
When the pipeline from the inlet water supply, because of the needle valve, ball valve, floating ball valve is normally open, water through the micro filter, needle valve, control room, ball valve, floating ball valve into the pool, the control room not formation pressure, the main valve opens, supply water towers (pool).
When a water tower (pool) rose to the surface of the setting height, floating ball float close floating ball valve, control indoor water pressure increases, promote the main valve closed, stop water supply.When the water drop, floating ball valve reopens, control the water pressure drop, the main valve to open again continue to water supply, set to keep the liquid surface height.
|Working Temperature||- 10C- 80C|
|Flange||AISI B16.1 Or PN16|
|Flow Media||Clean Water|
Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1
Materials And Dimension
