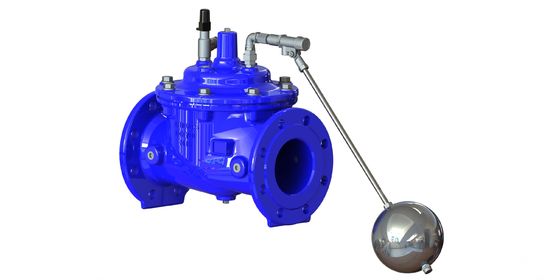

Remote EPOXY Coating SS304 Pilot Float Control Valve

I'm Online Chat Now

Remote EPOXY Coating SS304 Pilot Float Control Valve

Remote EPOXY Coating SS304 Pilot Float Control Valve
Remote EPOXY Coating SS304 Pilot Float Control Valve Remote EPOXY Coating SS304 Pilot Float Control Valve Remote EPOXY Coating SS304 Pilot Float Control Valve

Large Image :  Remote EPOXY Coating SS304 Pilot Float Control Valve

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: EN1074-5
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD RMB
Packaging Details: plywood cases
Delivery Time: 15-60 days
Payment Terms: L/C, T/T
Supply Ability: Based On order

Remote EPOXY Coating SS304 Pilot Float Control Valve

Description
Material: Ductile Iron GJS500-7 Pilot Material: SS304
Tubing: SS304 Coating: EPOXY
Diaphragm: Nylon Reinforcement With EPDM Rubber: EPDM
Product Name: Remote Float Control Valve
High Light:

SS304 Pilot Float Control Valve

,

EPOXY Coating Float Control Valve

,

Remote Float Control Valve





SS304 Float Pilot Ductile Iron Main Valve A100 Modulating Float Control Valve EPOXY Coated ​​







Description:



The main valve is controlled by a float valve, located in the tank or reservoir and set at the required maximum water level. The valve maintains the maximum level continuously.



Features:



Accurate and repeatable level control
• Simple and reliable design
• Easy installation and maintenance



Service Fields:


For water system, irrigation system.



Technical Data:



SizeDN50-DN800
Working Temperature- 10C- 80C
FlangeAISI B16.1 Or PN16
Flow MediaClean Water



Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1



Materials And Dimension



DN50-DN350

Remote EPOXY Coating SS304 Pilot Float Control Valve 0

No.DescriptionMaterialStandard
1BodyDuctile IronGJS500-7
2SeatStainless SteelAISI304/316
3O-ringRubberNBR
4O-ringRubberNBR
5BoltStainless SteelA2/A4
6WasherStainless SteelA2/A4
7BonnetDuctile IronGJS500-7
8BushBronzeC61900
9SpringStainless SteelAISI304/316
10Caulking NutStainless SteelA4
11DiaphragmNylon Reinforced RubberEPDM+Nylon Fabric
12Fixing holderDuctile IronGJS500-7
13Disc HolderDuctile IronGJS500-7
14SealRubberEPDM
15Seat RetainerStainless SteelAISI304/316
16StemStainless SteelAISI304/316
17PlugStainless SteelAISI304/316
18ScrewStainless SteelA2/A4
19PlugStainless SteelA2/A4
20WasherStainless SteelA2/A4



Remote EPOXY Coating SS304 Pilot Float Control Valve 1



DN400-DN800



Remote EPOXY Coating SS304 Pilot Float Control Valve 2

No.DescriptionMaterialStandard
1BodyDuctile IronGJS500-7
2SeatStainless SteelAISI304/316
3ScrewStainless SteelA2/A4
4ScrewStainless SteelA2/A4
5ScrewStainless SteelA2/A4
6SpringStainless SteelAISI304/316
7BonnetDuctile IronGJS500-7
8BushBronzeC61900
9O-ringRubberNBR
10Fix WasherBronzeC61900
11DiaphragmNylon Reinforced RubberEPDM+Nylon Fabric
12Eye BoltsCarbon Steel1040
13Fixing holderDuctile IronGJS500-7
14Disc HolderDuctile IronGJS500-7
15SealRubberEPDM
16Seal RetainerDuctile IronGJS500-7
17StemStainless SteelAISI304/316
18PlugStainless SteelAISI304/316
19O-ringRubberNBR
20CapDuctile IronGJS500-7
21PlugStainless SteelAISI304/316
22ScrewStainless SteelA2/A4
23O-ringRubberNBR
24ScrewStainless SteelA2/A4

Remote EPOXY Coating SS304 Pilot Float Control Valve 3
