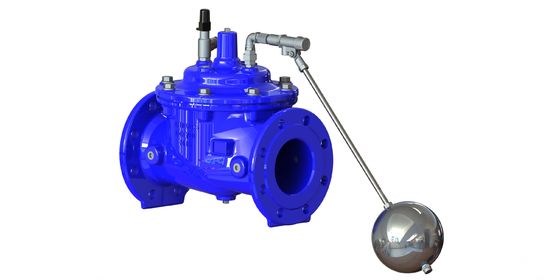

Ductile Iron EPOXY Coated Full Bore Float Control Valve

I'm Online Chat Now

Ductile Iron EPOXY Coated Full Bore Float Control Valve

Ductile Iron EPOXY Coated Full Bore Float Control Valve
Ductile Iron EPOXY Coated Full Bore Float Control Valve Ductile Iron EPOXY Coated Full Bore Float Control Valve Ductile Iron EPOXY Coated Full Bore Float Control Valve

Large Image :  Ductile Iron EPOXY Coated Full Bore Float Control Valve

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: EN1074-5
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD RMB
Packaging Details: Plywood cases
Delivery Time: 15-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order

Ductile Iron EPOXY Coated Full Bore Float Control Valve

Description
Material: Ductile Iron GJS500-7 Pilot Material: SS304
Standard: EN1074-5 Function: Modulating
Coating: EPOXY Diaphragm: Nylon Reinfocement With EPDM
High Light:

Full Bore Float Control Valve

,

EPOXY Coated Float Control Valve

,

Ductile Iron Float Control Valve





Stainless Steel Pilot Modulating Float control valve Nylon Reinfocement Diaphragm Full Bore EPOXY Coated​







Float Level Control Valve controls the water level of a water tank. The valve can also be located above the water level.
Use A100 for reservoirs and water tanks level control in any situation that maximum water level should be maintained. No need for energy other than line pressure. A100 is best fit in remote sites. Due to its simple design, it is virtually maintenance free.



Service Fields:


For water system, irrigation system.



Technical Data:



Size DN50-DN800
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water





Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1



Materials And Dimension



DN50-DN350

Ductile Iron EPOXY Coated Full Bore Float Control Valve 0Ductile Iron EPOXY Coated Full Bore Float Control Valve 1



Ductile Iron EPOXY Coated Full Bore Float Control Valve 2



DN400-DN800



Ductile Iron EPOXY Coated Full Bore Float Control Valve 3Ductile Iron EPOXY Coated Full Bore Float Control Valve 4

Ductile Iron EPOXY Coated Full Bore Float Control Valve 5
