EN1074 5 DN50 Float Level Valve , Modulating Water Tank Float Valve

EN1074 5 DN50 Float Level Valve , Modulating Water Tank Float Valve
EN1074 5 DN50 Float Level Valve , Modulating Water Tank Float Valve EN1074 5 DN50 Float Level Valve , Modulating Water Tank Float Valve

Large Image :  EN1074 5 DN50 Float Level Valve , Modulating Water Tank Float Valve

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: EN1074-5
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD,RMB
Packaging Details: Plywood cases
Delivery Time: 15-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order
Contact Now

EN1074 5 DN50 Float Level Valve , Modulating Water Tank Float Valve

Description
Material: Ductile Iron GJS500-7 Pilot Material: SS304
Standard: EN1074-5 Function: Modulating
Coating: EPOXY Diaphragm: Nylon Reinfocement With EPDM
High Light:

DN50 Float Level Valve

,

Modulating Water Tank Float Valve

,

EN1074 5 Water Tank Float Valve







Red / Blue Float Operated Valve with EPDM And Nylon Reinforcement Diaphragm



Description:

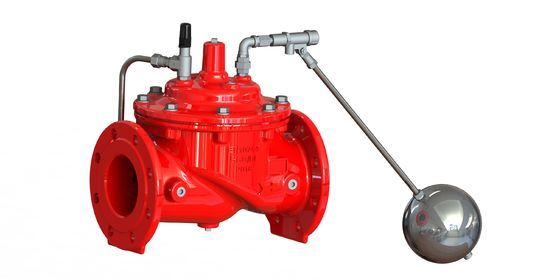

A100 is a float control valve, located in the tank or reservoir and set at the required maximum water level. When water level decrease the float drop , main valve open, water start to flow in, and when float reaches high water level, close the main valve.







Technical Data:



Size DN50-DN800
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water
Water resistance IP68
Standard BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1

Consult Factory for other applications





Materials And Dimension



DN50-DN350

EN1074 5 DN50 Float Level Valve , Modulating Water Tank Float Valve 0EN1074 5 DN50 Float Level Valve , Modulating Water Tank Float Valve 1



EN1074 5 DN50 Float Level Valve , Modulating Water Tank Float Valve 2



DN400-DN800



EN1074 5 DN50 Float Level Valve , Modulating Water Tank Float Valve 3EN1074 5 DN50 Float Level Valve , Modulating Water Tank Float Valve 4

EN1074 5 DN50 Float Level Valve , Modulating Water Tank Float Valve 5
