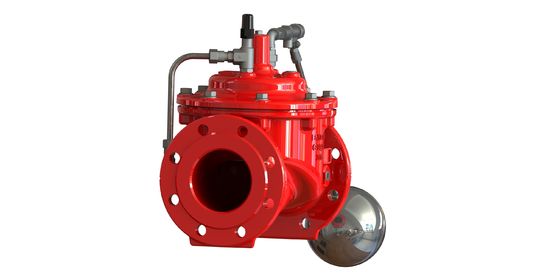

SS304 Pilot Water Tanks DN800 Float Control Valve
  • name
  • name
  • name
  • name

SS304 Pilot Water Tanks DN800 Float Control Valve

MOQ: 1
Price: USD RMB
Standard Packaging: Plywood cases
Delivery Period: 15-60 days
Payment Method: L/C, T/T
Supply Capacity: Based on order
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
OEM
Certification
EN1074-5
Model Number
OEM
Material:
Ductile Iron GJS500-7
Pilot Material:
SS304
Standard:
EN1074-5
Function:
Modulating
Coating:
EPOXY
Diaphragm:
Nylon Reinfocement With EPDM
Highlight:

Water Tanks Float Control Valve

,

SS304 Pilot Float Control Valve

,

DN800 Float Control Valve

Product Description





Full Bore EPOXY Coated Modulating Float control Valve Stainless Steel 304 Pilot Nylon Reinfocement Diaphragm







Use A100 for reservoirs and water tanks level control in any situation that maximum water level should be maintained. No need for energy other than line pressure. A100 is best fit in remote sites. Maintenance is easy. Main valve can be placed both inside and outside of water tank and unnecessary to removal from the main line. All iron parts are powder fusion epoxy bonded against rusty, which makes valve long term service. When water level decrease the float drop , main valve open, water start to flow in. When float reaches high water level, close the main valve



Service Fields:


For water system, irrigation system.



Technical Data:



Size DN50-DN800
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water





Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1



Materials And Dimension



DN50-DN350

SS304 Pilot Water Tanks DN800 Float Control Valve 0SS304 Pilot Water Tanks DN800 Float Control Valve 1



SS304 Pilot Water Tanks DN800 Float Control Valve 2



DN400-DN800



SS304 Pilot Water Tanks DN800 Float Control Valve 3SS304 Pilot Water Tanks DN800 Float Control Valve 4

SS304 Pilot Water Tanks DN800 Float Control Valve 5
