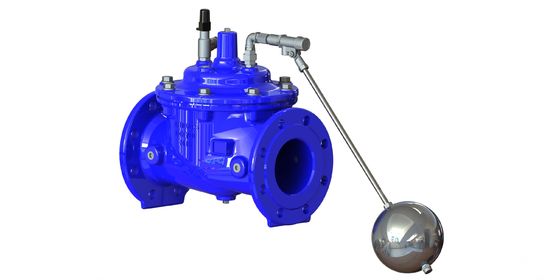

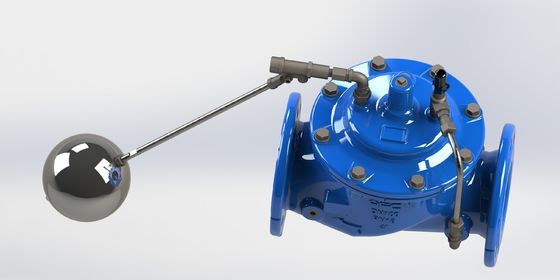

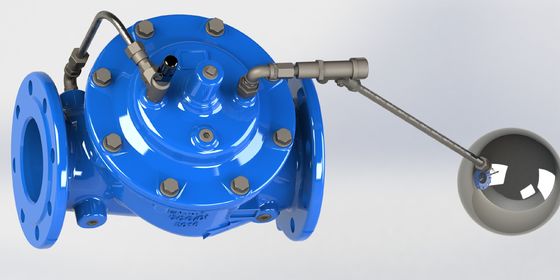

Remote EPOXY Coating SS304 Pilot Float Control Valve

Brand Name:	OEM
Model Number:	OEM
MOQ:	1
Price:	USD RMB
Payment Terms:	L/C, T/T
Supply Ability:	Based On order

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

EN1074-5

Material:

Ductile Iron GJS500-7

Pilot Material:

SS304

Tubing:

SS304

Coating:

EPOXY

Diaphragm:

Nylon Reinforcement With EPDM

Rubber:

EPDM

Product Name:

Remote Float Control Valve

Packaging Details:

plywood cases

Supply Ability:

Based On order

Highlight:

SS304 Pilot Float Control Valve

EPOXY Coating Float Control Valve

Remote Float Control Valve

Product Description

SS304 Float Pilot Ductile Iron Main Valve A100 Modulating Float Control Valve EPOXY Coated

Description:

The main valve is controlled by a float valve, located in the tank or reservoir and set at the required maximum water level. The valve maintains the maximum level continuously.

Features:

• Accurate and repeatable level control
• Simple and reliable design
• Easy installation and maintenance

Service Fields:

For water system, irrigation system.

Technical Data:

Size	DN50-DN800
Working Temperature	- 10C- 80C
Flange	AISI B16.1 Or PN16
Flow Media	Clean Water

Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1

Materials And Dimension

DN50-DN350

Remote EPOXY Coating SS304 Pilot Float Control Valve 0

No.	Description	Material	Standard
1	Body	Ductile Iron	GJS500-7
2	Seat	Stainless Steel	AISI304/316
3	O-ring	Rubber	NBR
4	O-ring	Rubber	NBR
5	Bolt	Stainless Steel	A2/A4
6	Washer	Stainless Steel	A2/A4
7	Bonnet	Ductile Iron	GJS500-7
8	Bush	Bronze	C61900
9	Spring	Stainless Steel	AISI304/316
10	Caulking Nut	Stainless Steel	A4
11	Diaphragm	Nylon Reinforced Rubber	EPDM+Nylon Fabric
12	Fixing holder	Ductile Iron	GJS500-7
13	Disc Holder	Ductile Iron	GJS500-7
14	Seal	Rubber	EPDM
15	Seat Retainer	Stainless Steel	AISI304/316
16	Stem	Stainless Steel	AISI304/316
17	Plug	Stainless Steel	AISI304/316
18	Screw	Stainless Steel	A2/A4
19	Plug	Stainless Steel	A2/A4
20	Washer	Stainless Steel	A2/A4

Remote EPOXY Coating SS304 Pilot Float Control Valve 1

DN400-DN800

Remote EPOXY Coating SS304 Pilot Float Control Valve 2

No.	Description	Material	Standard
1	Body	Ductile Iron	GJS500-7
2	Seat	Stainless Steel	AISI304/316
3	Screw	Stainless Steel	A2/A4
4	Screw	Stainless Steel	A2/A4
5	Screw	Stainless Steel	A2/A4
6	Spring	Stainless Steel	AISI304/316
7	Bonnet	Ductile Iron	GJS500-7
8	Bush	Bronze	C61900
9	O-ring	Rubber	NBR
10	Fix Washer	Bronze	C61900
11	Diaphragm	Nylon Reinforced Rubber	EPDM+Nylon Fabric
12	Eye Bolts	Carbon Steel	1040
13	Fixing holder	Ductile Iron	GJS500-7
14	Disc Holder	Ductile Iron	GJS500-7
15	Seal	Rubber	EPDM
16	Seal Retainer	Ductile Iron	GJS500-7
17	Stem	Stainless Steel	AISI304/316
18	Plug	Stainless Steel	AISI304/316
19	O-ring	Rubber	NBR
20	Cap	Ductile Iron	GJS500-7
21	Plug	Stainless Steel	AISI304/316
22	Screw	Stainless Steel	A2/A4
23	O-ring	Rubber	NBR
24	Screw	Stainless Steel	A2/A4
