Ductile Iron Full Bore Modulating Float Valve For Clean Water
  • name
  • name
  • name

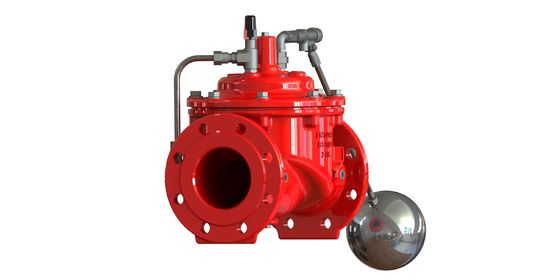

Ductile Iron Full Bore Modulating Float Valve For Clean Water

MOQ: 1
Price: USD RMB
Standard Packaging: Plywood cases
Delivery Period: 15-60 days
Payment Method: L/C, T/T
Supply Capacity: Based on order
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
OEM
Certification
EN1074-5
Model Number
OEM
Material:
Ductile Iron GJS500-7
Pilot Material:
SS304
Standard:
EN1074-5
Function:
Modulating
Coating:
EPOXY
Diaphragm:
Nylon Reinfocement With EPDM
Highlight:

Full Bore Modulating Float Valve

,

Ductile Iron Modulating Float Valve

Product Description





Modulating Float control valve Stainless Steel Pilot Nylon Reinfocement Diaphragm Full Bore EPOXY Coated​







A100 Float Level Control Valve controls the water level of a water tank. The valve can also be located above the water level. Use A100 for reservoirs and water tanks level control in any situation that maximum water level should be maintained. No need for energy other than line pressure. A100 is best fit in remote sites. Maintenance is easy. Main valve can be placed both inside and outside of water tank and unnecessary to removal from the main line All iron parts are powder fusion epoxy bonded against rusty, which makes valve long term service



Service Fields:


For water system, irrigation system.



Technical Data:



Size DN50-DN800
Working Temperature - 10C- 80C
Flange AISI B16.1 Or PN16
Flow Media Clean Water





Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1



Materials And Dimension



DN50-DN350

Ductile Iron Full Bore Modulating Float Valve For Clean Water 0Ductile Iron Full Bore Modulating Float Valve For Clean Water 1



Ductile Iron Full Bore Modulating Float Valve For Clean Water 2



DN400-DN800



Ductile Iron Full Bore Modulating Float Valve For Clean Water 3Ductile Iron Full Bore Modulating Float Valve For Clean Water 4

Ductile Iron Full Bore Modulating Float Valve For Clean Water 5
