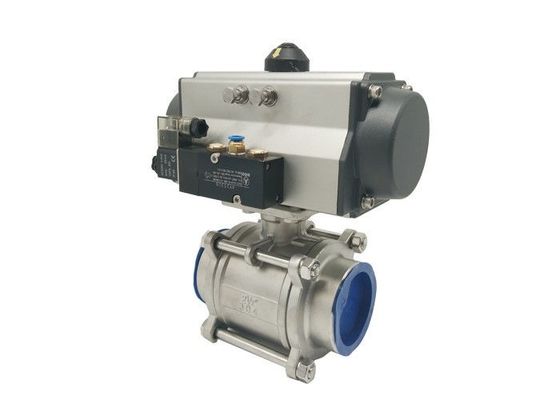

PTFE Seat Rotary 1000WOG Actuator Pneumatic Valve

MOQ:	1pc
Price:	negotiation
Standard Packaging:	Suitable Plywood Cases according to different valves structure
Delivery Period:	5~25 Work Days
Payment Method:	T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Capacity:	500pcs/Mon

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

OEM

Certification

CE&ISO

Model Number

OEM

Body Material:

Stainless Steel

Seat Material:

PTFE

Power:

Spring Return Actuator

Connection:

BSP/BSPT/NPT

Size:

1/2"~8"

Medium:

Water Oil Gas

Highlight:

1000WOG Actuator Pneumatic Valve

Rotary Actuator Pneumatic Valve

PTFE Seat Actuator Pneumatic Valve

Product Description

Rotary Actuated Industrial Pneumatic Valves 1000WOG Stainless Steel Ball Valve

A pneumatic rotary actuator uses compressed air to generate its operating energy. Some are designed specifically to remotely control valves. The clean, dry air can be provided via a central compressed air station, or in case of a compressed gas system, from the process gas.

Accessories which can use with this Ball Valve
On/off Indicator
Namur Standard Solenoid Valve in all Standard
Pneumatic & Electric-Pneumatic Valve Positioner
Declutchable Manual Override
Limit Switches for On/Off Indication at Panel Board
Filter + Regulator Combination with Pressure Gauge

Product Name	3PC Thread Ball Valve
Pressure	1000WOG
Valve Matreial	CF8/SS304	CF8M/SS316	WCB
Connection	BSP/BSPT/NPT

Specifications

Rack and pinion design rotary quarter turn pneumatic actuator
Double Acting or Spring Return Version
ISO5211, DIN3337 and Namur interfaces for easy mounting to valve, limit switch box and positioner
Suitable for indoor and outdoor application
Torque output from 3Nm to 13,024Nm (DA version) and 4Nm to 6,584Nm (SR version)
Aluminium alloy housing with nickel plated pinion
Travel angle 90° with travel stop adjustment of ± 5℃
Operating pressure from 2 bar up to 8 bar at temperature from -20℃ to +80℃

Advantage

1. Compact Size and Light weight Construction

2. Reliable, Long Lasting Performance

3. Standard “In Line” or “Cross Mount” Valve to Actuator Configurations

4. Spring-Return Design Accommodates Air Supply as Low as 50 psi

5. Stainless Steel External Trim and FKM O-Rings Standard

6. Direct Valve Stem Coupling to Actuator Shaft Minimizes Backlash

7. Manual Override Standard

Technical Data
Double Acting Pneumatic Actuator Ordering No.

PTFE Seat Rotary 1000WOG Actuator Pneumatic Valve 0

Double Acting	Model No	Torque(5.5Bar)
	ACT 042D	8.4Nm
	ACT 050D	18.3Nm
	ACT 063D	32.2Nm
	ACT 075D	64Nm
	ACT 090D	101Nm
	ACT 100D	146Nm
	ACT 115D	236Nm
	ACT 125D	305Nm
	ACT 145D	478Nm
	ACT 160D	624Nm
	ACT 190D	1185Nm
	ACT 210D	1447Nm
	ACT 240D	2126Nm
	ACT 270D	3229Nm
	ACT 300D	4197Nm
	ACT 350D	6283Nm
	ACT 400D	8953Nm
