Double Acting Screw Thread Pneumatic Actuated Ball Valve

I'm Online Chat Now

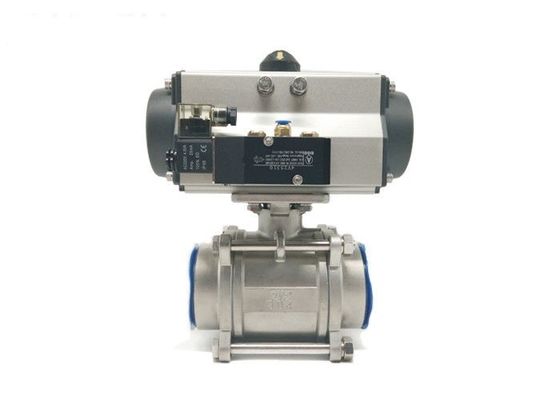

Double Acting Screw Thread Pneumatic Actuated Ball Valve

Double Acting Screw Thread Pneumatic Actuated Ball Valve
Double Acting Screw Thread Pneumatic Actuated Ball Valve

Large Image :  Double Acting Screw Thread Pneumatic Actuated Ball Valve

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE&ISO
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Suitable Plywood Cases according to different valves structure
Delivery Time: 5~25 Work Days
Payment Terms: T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Ability: 500pcs/Mon

Double Acting Screw Thread Pneumatic Actuated Ball Valve

Description
Body Material: Stainless Steel Seat Material: PTFE
Power: Spring Return Actuator Connection: BSP/BSPT/NPT
Size: 1/2"~8" Medium: Water Oil Gas
High Light:

Screw Thread Pneumatic Actuated Ball Valve

,

Double Acting pneumatic operated valve

,

Double Acting Pneumatic Actuated Ball Valve

3 Pieces Screw Thread Pneumatic Actuated Ball Valve Double Acting With Solenoid Valve


 Specifications

  • Features Of Pneumatic Operated Ball Valves :-
    Indicator:It is a mounting accessory with a Namur mounting which is standard for all pneumatic operators.
    Pinion: Pinion offers maximal wear resistance to the valve. It is made of accustomed alloy steel and is plated with 15um nickel to reduce friction.
    ActuatorBody: It is made of anodized aluminum ejection of which gives protection against corrosion and reduce the piston friction.
    End Caps: These caps offers maximum resistance against embryonic corrosive elements.
    Pistons: The aluminum pistons are contoured with high quality rings and guides. The piston design and the twin rack develop a continuous torque on all operators.
    Travel Adjustment: There are two external adjustment bolts in the actuator that offers a standard adjustment of 5 degrees in both open and closed positions.
    High performance springs: The preloaded high tensile steel springs providelong services with the corrosion resistant Epoxy coated on it.
    Bearing and guides: This provides a long life to the actuator by offering minimum friction.
    O-rings: These rings are for execution of trouble-free operation at standard temperature ranges.
    Product Details:
    On / OFF Indicator
    NAMUR Standard Solenoid Valve in all Standard Coil Voltage
    I/P Transducer (Convertor)
    Pneumatic valve positioner
    Electro-Pneumatic valve positioner
    Declutchable Manual Over - ride
    Limit Switches for On / Off Indication at Panel board
    Filter + Regulator Combination with Pressure Gauge
    Air Lock Valve


 Advantage

1. Compact Size and Light weight Construction

2. Reliable, Long Lasting Performance

3. Standard “In Line” or “Cross Mount” Valve to Actuator Configurations

4. Spring-Return Design Accommodates Air Supply as Low as 50 psi

5. Stainless Steel External Trim and FKM O-Rings Standard

6. Direct Valve Stem Coupling to Actuator Shaft Minimizes Backlash

7. Manual Override Standard


 Technical Data
Double Acting Pneumatic Actuator Ordering No.

Double Acting Screw Thread Pneumatic Actuated Ball Valve 0

Double
Acting
Model No Torque(5.5Bar)
ACT 042D 8.4Nm
ACT 050D 18.3Nm
ACT 063D 32.2Nm
ACT 075D 64Nm
ACT 090D 101Nm
ACT 100D 146Nm
ACT 115D 236Nm
ACT 125D 305Nm
ACT 145D 478Nm
ACT 160D 624Nm
ACT 190D 1185Nm
ACT 210D 1447Nm
ACT 240D 2126Nm
ACT 270D 3229Nm
ACT 300D 4197Nm
ACT 350D 6283Nm
ACT 400D 8953Nm


 Accessories which can use with this Ball Valve
On/off Indicator
Namur Standard Solenoid Valve in all Standard
Pneumatic & Electric-Pneumatic Valve Positioner
Declutchable Manual Override
Limit Switches for On/Off Indication at Panel Board
Filter + Regulator Combination with Pressure Gauge

 Model Selection
3PC Thread Pneumatic Ball Valve

Product Name 3PC Thread Ball Valve
Pressure 1000WOG
Valve Matreial CF8/SS304 CF8M/SS316 WCB
Connection BSP/BSPT/NPT
