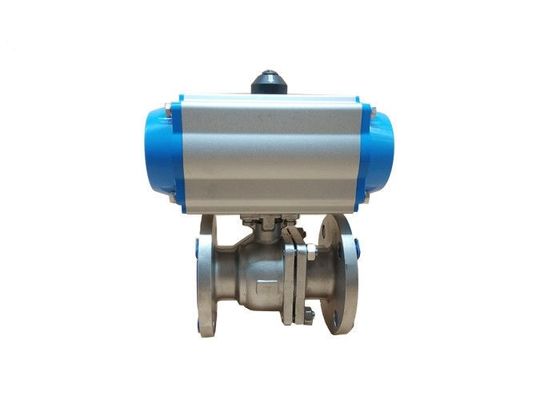

SS316 50A Full Port Pneumatic Actuated Ball Valve

Large Image : SS316 50A Full Port Pneumatic Actuated Ball Valve

Product Details:

Place of Origin:	China
Brand Name:	OEM
Certification:	CE&ISO
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	Suitable Plywood Cases according to different valves structure
Delivery Time:	5~25 Work Days
Payment Terms:	T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Ability:	500pcs/Mon

Contact Now

SS316 50A Full Port Pneumatic Actuated Ball Valve

Description

Material:	SS316	Seat Material:	PTFE
Power:	Spring Return Actuator	Pressure:	10K 20K
Valve Size:	15A~200A	Medium:	Water Oil Gas
High Light:	SS316 Pneumatic Actuated Ball Valve , 50A Pneumatic Actuated Ball Valve , Full Port Pneumatic Actuated Ball Valve

SS316 2PC Full Port Air Pneumatic Actuated Ball Valve Q641F JIS10K 50A

Parameters

Power supply	AC220V
Body size	DN15-250
Medium Temp	-80°C~160°C(no congelation.)
Operating pressure	PN1.0~2.5(MPa)
Action mode	4-20mA Signal input feedback, 0-90° gyration
Action time	4~30S
Body connections	Flange
Body material	WCB, ZG1CrM0, ZG1Cr18Ni9Ti
Sealed material	PTFE
Actuator material	Casting aluminum alloy
Applicable medium	Acid, alkali, salt, chlorine gas, steam, source water, mine pulp and paper pulp, aqua regia, oxidant, reducing agent, corrosive chemical liquid.

Specifications

Rack and pinion design rotary quarter turn pneumatic actuator
Double Acting or Spring Return Version
ISO5211, DIN3337 and Namur interfaces for easy mounting to valve, limit switch box and positioner
Suitable for indoor and outdoor application
Torque output from 3Nm to 13,024Nm (DA version) and 4Nm to 6,584Nm (SR version)
Aluminium alloy housing with nickel plated pinion
Travel angle 90° with travel stop adjustment of ± 5℃
Operating pressure from 2 bar up to 8 bar at temperature from -20℃ to +80℃

Advantage

1. Compact Size and Light weight Construction

2. Reliable, Long Lasting Performance

3. Standard “In Line” or “Cross Mount” Valve to Actuator Configurations

4. Spring-Return Design Accommodates Air Supply as Low as 50 psi

5. Stainless Steel External Trim and FKM O-Rings Standard

6. Direct Valve Stem Coupling to Actuator Shaft Minimizes Backlash

7. Manual Override Standard

Applicable leading medium

Medium state	Medium Temp.	Medium pressure	Medium characteristics	Medium concentration	Medium name
Liquid	-80ºC~+160ºC	0~20kg/cm2	Strong corrosion, high scour sharpen	unlimited	Acid, alkali, salt, chlorine, steam, source water, mine pulp, paper pulp, aqua regia, oxidant, reducing agent.
Gas	-80ºC~+160ºC	0~20kg/cm2	Strong corrosion, high scour sharpen	unlimited
Mixture of liquid and solid	-80ºC~+160ºC	0~20kg/cm2	Strong corrosion, high scour sharpen	<60%

Technical Data
Single Acting Pneumatic Actuator Ordering No.

SS316 50A Full Port Pneumatic Actuated Ball Valve 0

DN (mm)	D	D1	D2	d	K	M	L	B	F	H1	H2	L1	L2	Weight kg
15	95	15	28	45	65	4XΦ14	102	14	2	525	55	170	83
20	105	15	28	55	75	4XΦ14	102	14	2	535	60	186	95
25	115	20	40	66	85	4XΦ14	102	14	2	535	65	186	95
32	135	25	46	78	100	4XΦ18	114	16	2	545	75	206	103
40	145	32	54	85	110	4XΦ18	114	16	2	555	80	262	103
50	160	40	65	100	125	4XΦ18	124	16	2	565	90	270	109
65	180	50	80	120	145	4XΦ18	145	18	2	580	100	301	122
80	195	65	100	135	160	8XΦ18	165	20	2	600	110	392	142
100	215	80	110	155	180	8XΦ18	194	20	2	650	120	460	152
125	245	100	135	185	210	8XΦ18	210	22	3	700	135	515	174
150	280	125	165	210	240	8XΦ23	229	24	3	750	150	560	205
200	335	160	205	265	295	12XΦ23	243	26	3	800	180	654	226
250	405	210	260	320	355	12XΦ26	297	30	3	850	210	654	260
300	460	250	322	375	410	12XΦ26	340	30	3	950	240	725	294
350	520	300	365	435	470	16XΦ26	422	34	3	1000	270	742	380

JIS Standard Ball Valve Parameter(15A~200A)

SS316 50A Full Port Pneumatic Actuated Ball Valve 1

Pressure	Size	φD	L	φE	φB	φC	T
JIS 10K	15	15	108	95	70	52	12
	20	20	117	100	75	58	14
	25	25	127	125	90	70	14
	32	32	140	135	100	80	16
	40	38	165	140	105	85	16
	50	50	178	155	120	100	16

Accessories which can use with this Ball Valve
On/off Indicator
Namur Standard Solenoid Valve in all Standard
Pneumatic & Electric-Pneumatic Valve Positioner
Declutchable Manual Override
Limit Switches for On/Off Indication at Panel Board
Filter + Regulator Combination with Pressure Gauge

More Selection

Standard	ANSI	GB	JIS	DIN
Pressure	150LB/300LB	PN16/PN25/PN40	10K/20K	PN16/PN40
Valve Matreial	1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB
Actuator	1) Single Acting(Spring Return) 2) Double Acting
Accessories	1) Limit Switch 2) Solenoid valve 3) Filter 4)Positioner
