OEM DN800 Modulating Float Controlled Water Valve

Brand Name:	OEM
Model Number:	OEM
MOQ:	1
Price:	USD RMB
Payment Terms:	L/C, T/T
Supply Ability:	Based On order

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

EN1074-5

Material:

Ductile Iron GJS500-7

Pilot Material:

SS304

Tubing:

SS304

Coating:

EPOXY

Diaphragm:

Nylon Reinforcement With EPDM

Rubber:

EPDM

Packaging Details:

plywood cases

Supply Ability:

Based On order

Highlight:

DN800 Float Controlled Water Valve

OEM Float Controlled Water Valve

Modulating Float Controlled Water Valve

Product Description

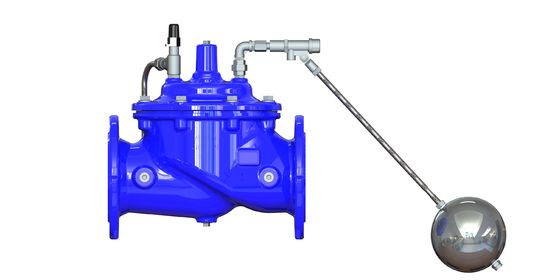

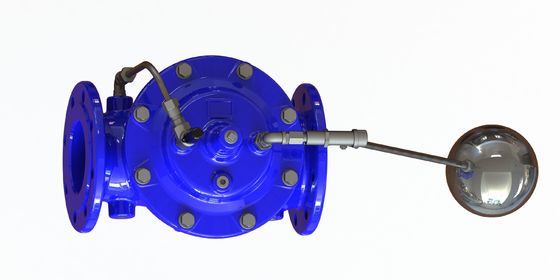

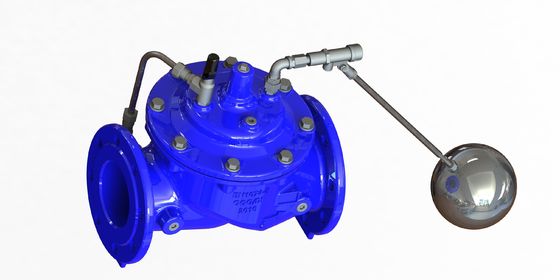

EPOXY Coated SS304 Float Pilot Ductile Iron Main Valve A100 Modulating Float Control Valve

Description:

The main valve is controlled by a float valve, located in the tank or reservoir and set at the required maximum water level. The valve maintains the maximum level continuously.

Features:

Operates automatically off line pressure.
Nylon-reinforced diaphragm.
Diaphragm assembly guided top and bottom.
Easily maintained without removal from the line.
Replaceable seat ring.
Valves are factory tested.

Service Fields:

For water system, irrigation system.

Technical Data:

Size	DN50-DN800
Working Temperature	- 10C- 80C
Flange	AISI B16.1 Or PN16
Flow Media	Clean Water

Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1

Materials And Dimension

DN50-DN350

OEM DN800 Modulating Float Controlled Water Valve 0

OEM DN800 Modulating Float Controlled Water Valve 2

DN400-DN800

OEM DN800 Modulating Float Controlled Water Valve 3

OEM DN800 Modulating Float Controlled Water Valve 5
