150LB Pneumatic Actuator Valve , CF8 Pneumatic Ball Valve

Double Acting Flange Pneumatic Actuated Ball Valve Control Valve 150LB

Pneumatic Actuated High Temperature Flanged Ball Valve

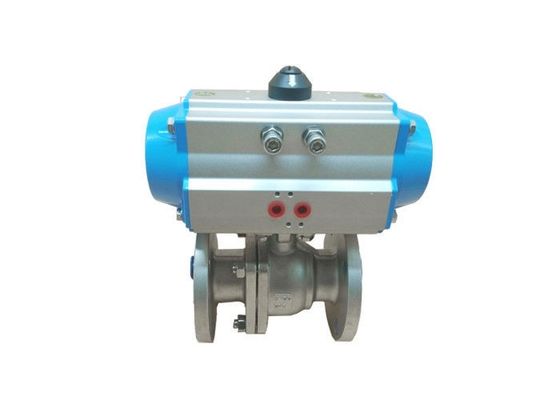

A high temperature Pneumatically actuated flanged PN16 or ANSI 150 ball valve suitable for more arduous applications. The full bore, 3 piece valve comes in stainless steel with options for various end connections, Carbon filled reinforced PTFE seat and seal.

The valve is fitted to a powerful pneumatic spring return or double acting actuator via a heat dissipating extension (TSM).

Configurable options include limit switches, solenoid valves and positioners.

In addition, our pneumatic quarter turn rack and pinion actuator is sized with a 30% safety factor built-in, requiring a pilot pressure of 5.5 Bar and benefits from a Namur interface for both pilot solenoid valve and switchbox.

Advantage

1. Compact Size and Light weight Construction

2. Reliable, Long Lasting Performance

3. Standard “In Line” or “Cross Mount” Valve to Actuator Configurations

4. Spring-Return Design Accommodates Air Supply as Low as 50 psi

5. Stainless Steel External Trim and FKM O-Rings Standard

6. Direct Valve Stem Coupling to Actuator Shaft Minimizes Backlash

7. Manual Override Standard

 Specifications

• Rack and pinion design rotary quarter turn pneumatic actuator
• Double Acting or Spring Return Version
• ISO5211, DIN3337 and Namur interfaces for easy mounting to valve, limit switch box and positioner
• Suitable for indoor and outdoor application
• Torque output from 3Nm to 13,024Nm (DA version) and 4Nm to 6,584Nm (SR version)
• Aluminium alloy housing with nickel plated pinion
• Travel angle 90° with travel stop adjustment of ± 5℃
• Operating pressure from 2 bar up to 8 bar at temperature from -20℃ to +80℃

 Technical Data
Double Acting Pneumatic Actuator Ordering No.

150LB Ball Valve Parameter(1/2"~8")

 Accessories which can use with this Ball Valve
On/off Indicator
Namur Standard Solenoid Valve in all Standard
Pneumatic & Electric-Pneumatic Valve Positioner
Declutchable Manual Override
Limit Switches for On/Off Indication at Panel Board
Filter + Regulator Combination with Pressure Gauge

 More Selection
