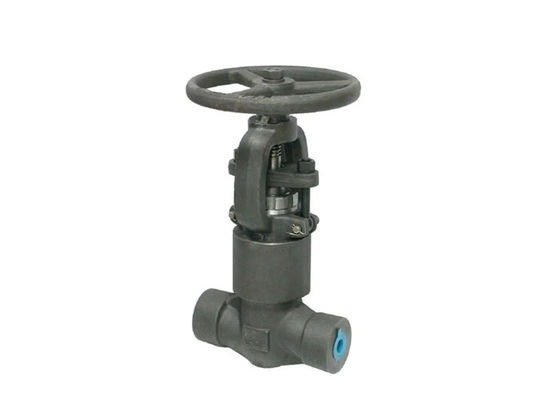

ISO Extended Stem Gate Valve , A105 High Pressure Gate Valve

ISO Extended Stem Gate Valve , A105 High Pressure Gate Valve

ISO Extended Stem Gate Valve , A105 High Pressure Gate Valve

Brand Name:	OEM
Model Number:	OEM
MOQ:	1PC
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000 Sets/Year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

API ISO Ts CE

Media:

Oil

Temperature:

Ordinary Temperature

Type:

Straight-through

Material:

Carbon Steel

Connection Form:

Thread

Pressure:

High Pressure

Actuator:

Manual

Seal Surface:

Wedge Gate Valve

Standard:

ANSI

Thread Position Of Valve Rod:

Outside Gate Valve

Packaging Details:

Wooden Case

Supply Ability:

100000 Sets/Year

Highlight:

ISO Extended Stem Gate Valve

,

A105 High Pressure Gate Valve

,

ISO High Pressure Gate Valve

Product Description

Pressure Seal Extended Stem Gate Valve

gate valves are multi-turn valves typically used as a stop valve or isolation valve in either fully open or fully closed positions. Our gate valve design utilizes an Outside Screw and Yoke (OS&Y) which is advantageous in that the threads are outside the fluid resulting in minimized thread damage.

Design Features:

Outside Screw and Yoke(OS&Y)
Two Piece self aligning packing gland
Bolted bonnet with spiral-wound gasket or Weld bonnet
Integral backseat

Optional Features:

Forged Carbon, Stainless or Alloy Steel Materials
Full Port option available for classes 150 - 2500
Extended Stem or Below Seal
Flanged, Threaded or Socket Weld Ends
Available in all trim configurations
Welded Bonnet or Pressure Seal Bonnet
Locking Device upon request
Manufacturing to NACE MR0175 upon request

Material Selection for Globe Valves:

Carbon Steel (A105)
Low Temperture Carbon Steel (LF2)
Stainless Steel (SS304, SS304L, SS316, SS316L, SS347, 904L)
Low Alloys (F1, F11, F22)
High Alloys (F5, F9,F91, F62, F20 )
Duplex & Super Duplex (2205, 2507, S32760)
Bronze (C95800, C95500, C95400)
Inconel (Inconel 625, Inconel 825)

Remarks: The above materials are applicable to valve body. Contact JIEYU for the valve component material.

ISO Extended Stem Gate Valve , A105 High Pressure Gate Valve 0

ISO Extended Stem Gate Valve , A105 High Pressure Gate Valve 1
