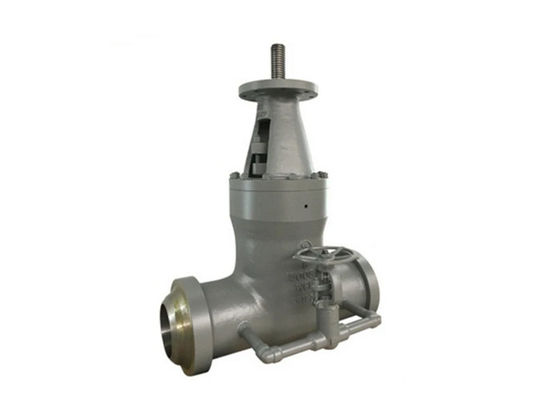

DN20 Pressure Seal Bonnet Valve , ANSI Welded Bonnet Gate Valve

High Pressure Weld Bonnet Cast Steel Industrial Gate Valve

VALVE manufactures superior cast body, bolted bonnet OS&Y gate valves in a variety of materials, trims, packing types, sizes (2" thru 48") and pressure classes (150 thru 2500). The mechanical characteristics make the wedge gate valve are ideal for bi-directional "total flow system open/shut-off" applications with minimal turbulance and pressure drop.

The valve design conforms to API 600 and B16.34. Face-to-face and end-to-end dimensions conform to ANSI B16.5 and B16.25.

Gate Valve Benefits

• Little friction and minimal drop in pressure when fully opened
• Eliminates leaks
• Rising stem configurations make visual inspections easy
• Nonrising stem configurations are ideal for areas underground or where space is limited
• Increase efficiency by saving energy when opening or closing a gate valve

Material Selection for Gate Valves

• Carbon Steel (A105-WCB, WCC)
• Low Temperture Carbon Steel (LF2-LCC, LCB)
• Stainless Steel (SS304, SS304L, SS316, SS316L, SS347, 904L)
• Low Alloys (F1-WC1, F11-WC6, F22-WC9)
• High Alloys (F5-C5, F9-C12,F91-C12A, F62-CN3MN, F20-Alloy 20 )
• Duplex & Super Duplex (2205-4A, 2507-5A, S32760-6A)
• Bronze (C95800, C95500, C95400)
• Inconel (Inconel 625, Inconel 825)

Remarks: The above materials are applicable to valve body. Contact JIEYU for the valve component material.
