Home ProductsCryogenic Ball Valve

Welded Type Stainless Steel Cryogenic Ball Valve For LNG

I'm Online Chat Now

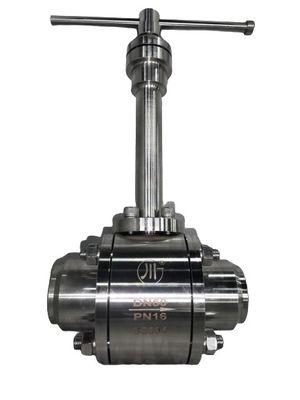

Welded Type Stainless Steel Cryogenic Ball Valve For LNG

Welded Type Stainless Steel Cryogenic Ball Valve For LNG
Welded Type Stainless Steel Cryogenic Ball Valve For LNG Welded Type Stainless Steel Cryogenic Ball Valve For LNG

Large Image :  Welded Type Stainless Steel Cryogenic Ball Valve For LNG

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE/ISO
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD200 PER PC
Packaging Details: Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for valves are available
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 3000pcs per month

Welded Type Stainless Steel Cryogenic Ball Valve For LNG

Description
Media: LO2,LN2,LAr,LNG,etc Power: Manual
Material: Stainless Steel Application: Industry
Valve Color: Customer Request Temperature Of Media: ≥-196℃
High Light:

Stainless Steel Cryogenic Ball Valve

,

Welded Type Cryogenic Ball Valve

,

DN50mm cryogenic valve

OEM Welded Type Cryogenic SS Ball Valve for LNG New Type

Additional Information

Valve Type Ball Valves
Industry Cryogenic
Manufacturer OEM
Product Type Valves
Design Configurations Extended, Non-Extended, Top Entry
Applications Cryogenics, LNG, Processing, Shipping, Storage, Transport
Control Types Manual
Medium Cryogenic Liquids, Gases, Low Temperature
Connections BSPP, BSPT, Butt Weld, Flanged ANSI, Flanged DIN, NPT, Socket Weld
Body Material Stainless Steel
Seat Materials PTFE
Our Advantage

1. Excellent technology:

the technology is in the leading level in China, cooperate with the most famous

universities in China;



2. Advanced equipment:

advanced processing equipment and testing means, providing the integration of automation system solutions for product, engineering, service and training.



3. Strong team:

have many senior engineers with plenty of research, development, design

experience, providing professional service for sales and after sales.



4. Good quality:

reliable and stable quality, good performance, long life time.



5. Full series of products:

covers full category of valves, meet the general standard of every country in the world, such as GB, DIN, ASTM, BS, JIS.



6. Professional after sales service:

have the professional engineer team to provide the service.



7. Certificates:

passed the ISO9001 certificate as well as CE,ISOetc.



8. Fast delivery time:

have the stock, fast delivery time could be guarantee.



9. Packing:

packing strictly as per the exporting standard or as per the customized request.



10. Long-term quality warranty time:

provide 12 months quality warranty time.



Product Description


Main technical parameters Nominal diameter: DN10-250mm


Nominal Pressure: PN2.5-6.4MPa


Applicable medium: O2, N2, Ar, LNG


Applicable temperature: -80℃~+80℃


Connecting format:


Material: Body: CF8      Bonnet: 06Cr19NI10


Stem: 06Cr19NI10      Packing: PTFE      Disc face ring:PCTFE



Products

Welded Type Stainless Steel Cryogenic Ball Valve For LNG 0

Notes When Use

Notes When Use


1 . It should ensure that the pipe is blown clean before installation.



2 . When installing, make sure that the flow direction indicated by the arrow on the valve body should be consistent with the flow direction of the fluid.



3 . This valve has been degreased. Store and keep clean when installing.



4 . After the pipeline construction is completed, all the valves on the pipeline should be opened, and the residue in the pipeline should be thoroughly and thoroughly kept to ensure that the pipeline system is clean and free of debris.



5 . The installation system diagram with the oil-free requirements should be degreased.



6 . Slowly open and close during use.



7 . If the precision parts such as the valve disc, valve seat and valve stem are worn or damaged, it must be repaired and replaced in time.



8 . For parts such as gaskets and sealing materials, replace them with new ones each time.
