| MOQ: | 1 pcs |
| Price: | USD268 per pc |
| Standard Packaging: | Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for valves are available |
| Delivery Period: | 5-8 work days |
| Payment Method: | T/T |
| Supply Capacity: | 3000pcs per month |

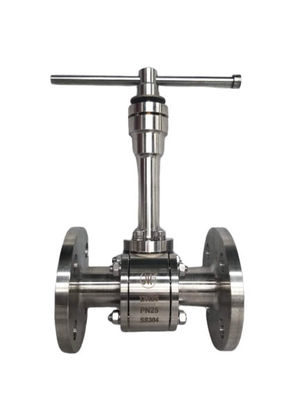

Flange Type PN25 DN25 Cryogenic Ball Valve for LO2 LNG
Applications
Liquefied natural gas (LNG)
Liquefied petroleum gas (LPG)
Liquefied oxygen
Liquefied hydrogen.
Air separation industry
Design Features & Benefits
Extended bonnet design to ensure reliability of the stem packing & sealing.
Drainage board design to prevent condensation water.
Anti-Statistic & Fire-safe Design.
Cavity automatic self pressure relief, suitable and safe for explosive medium.
Live-load API 622 certified graphite and lip-seal sealing to ensure API 624 fugitive emission compliance.
Suitable for working temperature as low as -196℃ .
Multiple Seat Design option, suitable for various working medium and condition.
Top Entry or Side Entry optional design.
Product Description
| Valve Type: | Falange Type Ball Valve |
| Operated Type: | Handwheel |
| Connection Type: | Flange |
| Structure Type: | Through Way Type |
| Nominal Diameter: | DN10~100mm |
| Nominal Pressure: | PN4.0MPa, PN2.5MPa |
| CL300 | |
| Material: | Valve Body:ZGOCr18Ni9 |
| Valve Bonnet:OCr18Ni9 | |
| Valve Stem:OCr18Ni9 | |
| Stuffing:PTFE | |
| Disc seal ring:PCTFE | |
| Suitable Medium: | LO2,LN2,LAr,LNG,etc |
| Suitable Temparature: | (-196℃~+80℃) |
| Design and Manufacture: | Conform to GB/T24925-2010 |
| Testing: | Conform to GB/T13927-2008 |
| Valve Lifetime: | Specified according to usage frequency and installation location |
| Lead Time: |
Customized valves are usually 30~45 days; Stock valves are usually within 5 days. |
For your company to order valve products in our company, our factory makes the following commitments in terms of after-sales service:
1. Our company implements warranty on product quality;
2. After the contract is signed, guarantee the quality and quantity, and deliver on time;
3. The company ensures that the valve products provided meet the contract targets
4. For technical consultation of the demand side, give answers at any time;
5. When delivering the equipment, the factory delivers the following materials to the purchaser: delivery list, product certificate, product sample, product instruction manual, technical information;
After receiving a letter or a phone call from the user regarding quality issues, we guarantee a response within 24 hours to resolve the issue as quickly as possible
Our Product
![]()
![]()
![]()
1. Excellent technology:
the technology is in the leading level in China, cooperate with the most famous
universities in China;
2. Advanced equipment:
advanced processing equipment and testing means, providing the integration of automation system solutions for product, engineering, service and training.
3. Strong team:
have many senior engineers with plenty of research, development, design
experience, providing professional service for sales and after sales.
4. Good quality:
reliable and stable quality, good performance, long life time.
5. Full series of products:
covers full category of valves, meet the general standard of every country in the world, such as GB, DIN, ASTM, BS, JIS.
6. Professional after sales service:
have the professional engineer team to provide the service.
7. Certificates:
passed the ISO9001 certificate as well as CE,ISOetc.
8. Fast delivery time:
have the stock, fast delivery time could be guarantee.
9. Packing:
packing strictly as per the exporting standard or as per the customized request.
10. Long-term quality warranty time:
provide 12 months quality warranty time.
