|Connection Form:||Flange||Pressure:||Ordinary Temperature|
|Actuator:||Manual||Seal Surface:||Wedge Gate Valve|
|Standard:||ANSI||Body / Wedge / Stem / Seat:||4A(2205), 5A(2507), C5, C12A, Wc6, Wc9,Inconel 625|
Straight Through Pressure Seal Gate Valve,
Cast Steel Pressure Seal Gate Valve

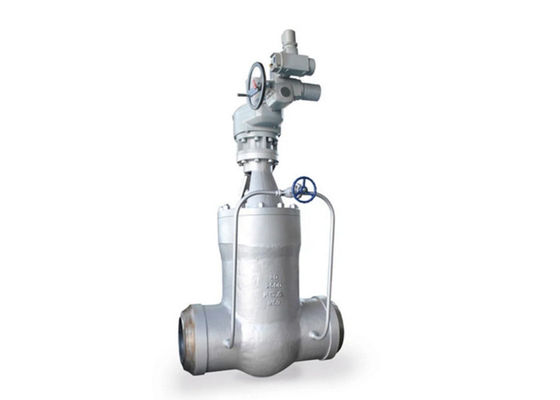

Cast Steel Pressure Seal Bonnet Industrial Gate Valve
The flexible wedge is a one-piece, fully guided cast wedge with a central hub to allow the seating faces to move relative to each other, thus compensating for distortion of the body seats due to thermal expansion or piping loads. Seat ring and wedge seating face are set at a 9° angle from vertical to minimize sliding contact of the wedge and seat ring during opening and closing.
Wedging actions help effect a tight seal in low differential pressure services. Flexible wedge construction resists wedge sticking or binding in services where the valve may be closed when cold and opened when hot. Seating surfaces are hardfaced with Stellite®6 to provide high life cycle capability in very high differential pressure services.
The gate is a split design using two discs spring loaded and held together by a gate holder with a corrosion reservior spring to provide initial energizing when closed. The gate relies for seat tightness on the primary fluid pressure acting on the downstream seat. There is no wedging action or extra loading on the seats resulting in considerably lower operating torque. During closing there is a bevel on the bottom of the gate to guide it in between the seats and recompress the spring.
Remarks: The above materials are applicable to valve body. Contact JIEYU for the valve component material.
