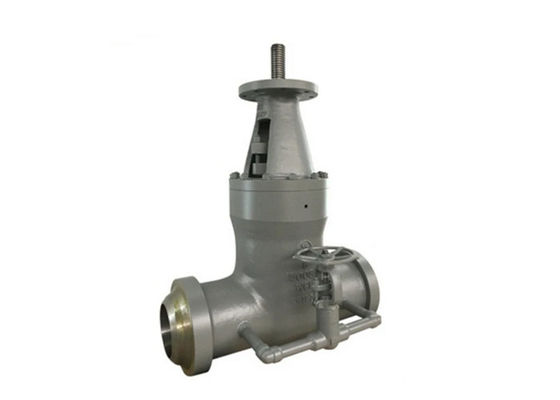

DN20 Pressure Seal Bonnet Valve , ANSI Welded Bonnet Gate Valve

Brand Name:	OEM
Model Number:	OEM
MOQ:	1PC
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000 Sets/Year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

API ISO Ts CE

Media:

Water

Temperature:

Ordinary Temperature

Type:

Straight-through

Material:

Carbon Steel

Connection Form:

Flange

Pressure:

Ordinary Temperature

Actuator:

Manual

Seal Surface:

Wedge Gate Valve

Standard:

ANSI

Body / Wedge / Stem / Seat:

4A(2205), 5A(2507), C5, C12A, Wc6, Wc9,Inconel 625

Packaging Details:

Wooden Case

Supply Ability:

100000 Sets/Year

Highlight:

DN20 Pressure Seal Bonnet Valve

ANSI Welded Bonnet Gate Valve

ANSI Pressure Seal Bonnet Valve

Product Description

High Pressure Weld Bonnet Cast Steel Industrial Gate Valve

VALVE manufactures superior cast body, bolted bonnet OS&Y gate valves in a variety of materials, trims, packing types, sizes (2" thru 48") and pressure classes (150 thru 2500). The mechanical characteristics make the wedge gate valve are ideal for bi-directional "total flow system open/shut-off" applications with minimal turbulance and pressure drop.

The valve design conforms to API 600 and B16.34. Face-to-face and end-to-end dimensions conform to ANSI B16.5 and B16.25.

DN20 Pressure Seal Bonnet Valve , ANSI Welded Bonnet Gate Valve 0

Gate Valve Benefits

Little friction and minimal drop in pressure when fully opened
Eliminates leaks
Rising stem configurations make visual inspections easy
Nonrising stem configurations are ideal for areas underground or where space is limited
Increase efficiency by saving energy when opening or closing a gate valve

Material Selection for Gate Valves

Carbon Steel (A105-WCB, WCC)
Low Temperture Carbon Steel (LF2-LCC, LCB)
Stainless Steel (SS304, SS304L, SS316, SS316L, SS347, 904L)
Low Alloys (F1-WC1, F11-WC6, F22-WC9)
High Alloys (F5-C5, F9-C12,F91-C12A, F62-CN3MN, F20-Alloy 20 )
Duplex & Super Duplex (2205-4A, 2507-5A, S32760-6A)
Bronze (C95800, C95500, C95400)
Inconel (Inconel 625, Inconel 825)

Remarks: The above materials are applicable to valve body. Contact JIEYU for the valve component material.

DN20 Pressure Seal Bonnet Valve , ANSI Welded Bonnet Gate Valve 1

DN20 Pressure Seal Bonnet Valve , ANSI Welded Bonnet Gate Valve 2
