BGQ61F Grade ISO9001 Fully Welded Ball Valve For Oil

I'm Online Chat Now

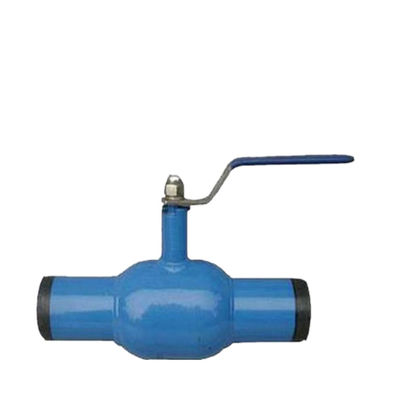

BGQ61F Grade ISO9001 Fully Welded Ball Valve For Oil

BGQ61F Grade ISO9001 Fully Welded Ball Valve For Oil
BGQ61F Grade ISO9001 Fully Welded Ball Valve For Oil

Large Image :  BGQ61F Grade ISO9001 Fully Welded Ball Valve For Oil

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: $1.00 - $20.00 PER PC
Packaging Details: Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for ball valve
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 100 Set/Sets per Day

BGQ61F Grade ISO9001 Fully Welded Ball Valve For Oil

Description
Application: General Power: Manual
Structure: Ball Media: Water,oil,gas,etc
Valve Material: Cast Steel Model: Customize
Logo: Customize Logo Packing Size: Export Wooden Case
High Light:

ISO9001 Fully Welded Ball Valve

,

BGQ61F Grade Fully Welded Ball Valve

,

Fully Welded Ball Valve For Oil

 Carbon Steel Fully Welded Ball Valve Anti Rust With CE ISO9001 Approved

CE/ISO9001 Approved Gas Carbon Steel Fully Welded Ball Valve

Product Description

Product structure and characteristics

City gas: gas output pipelines, main lines, and branch supply pipelines.

Central heating: large-scale heating equipment output pipeline, main line, branch line.


Full Welded Ball Valve

Heat exchanger: the opening and closing of pipes and circuits.



Iron and steel plants: various fluid pipelines, exhaust gas pipelines, gas and heat supply pipelines, and fuel supply pipelines.



Various industrial equipment: various heat treatment pipelines, various industrial gas and heat pipelines.



Technical descriptions:
Nominal diameter: Full bore or Regular bore DN15 to DN 200 (1/2" to 8") ;

Nominal Pressure: PN 16 to PN 64 / ANSI Class 150 to Class 300;

Working temperature: -29 ℃ to 200 ℃ (-20℉ to 392℉)

Service: district heating hot water, natural gas, oil, steam, petrochemical .etc.

Operate actuator: lever, gear (Vertical / Horizontal), pneumatic / electrical

Materials Available:
Body: ST37.8 / P235GH / A105 / LF2 / F304 / F316. Etc.

Ball : F304 / F316 ( Option upon request )

Seat: PTFE+C / Nylon / PEEK. etc.

Benefits:
International Certificates & Standards ;

Designed for district heating system , heat transfer piping , oil pipelines and gas industry application ;

Same lifetime as the pipeline system ;

Maintenance-free , no adjustment or lubrication with no running costs ;

Bi-Directional valve.


Main Characteristics:
One-piece welded body & End piece connection pipe (Connection dimension to ASTM / EN / KS / JIS / GOST Standard .etc will be available.

Bubble tight excellent sealing with PTFE+C seats.

Pre-loaded seat springs ensure leak-tight at low pressure and reduce valve operational torque.

Anti blow-out stem.

Double O-rings ensure the stem sealing and are replaceable.

Stem dry bearing, metal with PTFE coating having self-lubricating capabilities. (Additional lubricant unnecessary.



Valve Display





BGQ61F Grade ISO9001 Fully Welded Ball Valve For Oil 0









Valve Feature





The all-welded ball valve is welded with a seamless steel tube. The entire valve is bolt-free and has no external leakage due to handling collisions and casting sand holes. It is lightweight and easy to transport and install. Because the seat is designed to be loaded by springs or butterfly springs, it is adaptable to changes in pressure and temperature, and does not create any leakage during the pressure and temperature range.





Valve Specification

BGQ61F Grade ISO9001 Fully Welded Ball Valve For Oil 1



DN
1.6MPa/2.5MPa/4.0MPa
L
H
A
B
150
457
340
172
154
200
521
410
223
203
250
559
470
278
255
300
635
525
329
305
400
838
675
413
387
500
991
900
516
489
600
1143
1075
619
591
700
1346
1200
721
695
800
1524
1350
825
797
1000
1900
1800
1020
995
1200
2180
2100
1220
1195



FAQ

Q1. Is sample order acceptable?
A: Yes.It's ok.

Q2. How to place the order?
A: You can send us email or inquiry at alibaba directly.

Q3. How many days for delivery?
A: We have stock for standard products.

Q4. How to make the payment?
A: We accept BankT/T,Western Union,Paypal, L/C or Other payments;

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.


Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
