Hygienic Manual Butterfly Valve

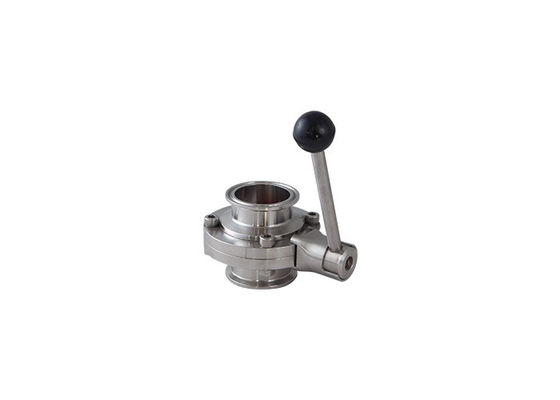

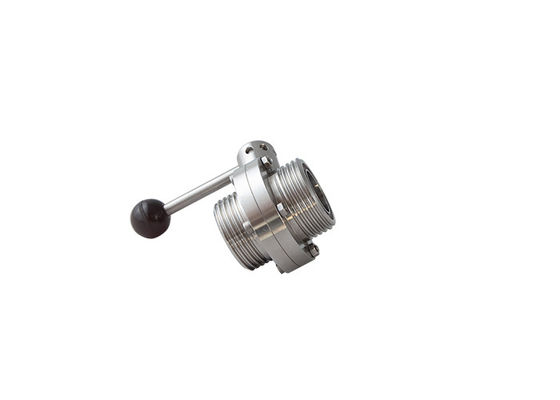

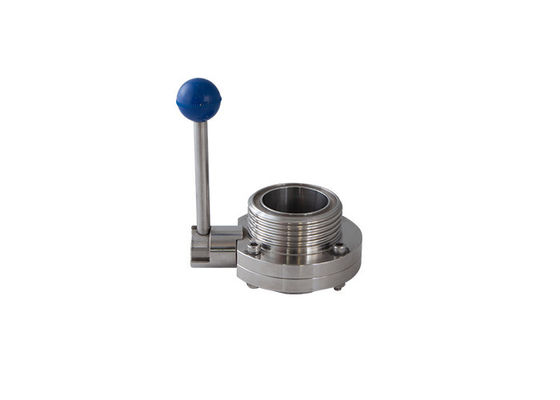

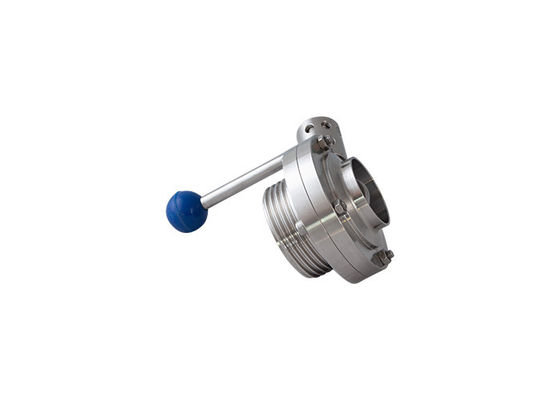

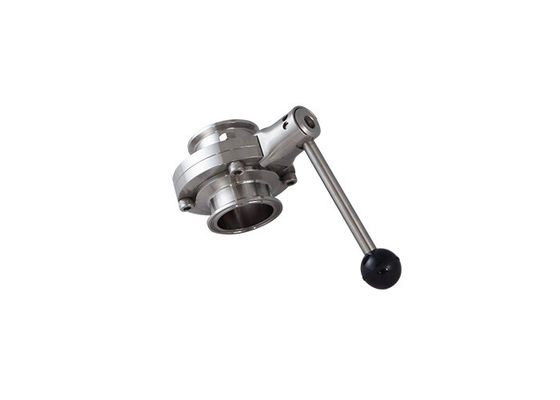

Our Hygienic Manual Butterfly Valve is suitable for use in food, dairy, brewery and general hygienic process applications. A sanitary valve with Stainless Steel body and food grade EPDM seals in OD Weld, RJT Male / Male or Clamp End connection and notch lever or pull handle.
Butterfly valves provide manual on / off isolation and throttling of flow in line.
Suitable for pneumatic actuation.
Key features:
Available in OD Weld, RJT Male / Male and Clamp End
Sizes: 1" to 4"
Temperature range: -10°C to 120°C
Pressure range: Up to 10 Bar (water at 20°C)
Liners conform to FDA requirements
Actuated version available
Technical Parameters
| Standard |
3A,SMS,DIN,ISO,RJT,IDF |
| Product wetted steel parts |
AISI304/AISI316L |
Provided with material inspection report |
| Other steel parts |
AISI304 |
| Size |
3/4"~6",DN20~DN150,19mm~152.4mm |
| Seal material |
EPDM/VMQ/FPM |
All seals material comply with FDA21CFR117.2600 |
| Working pressure |
≤10bar(145psi) |
| Supply pressure for air actuator |
5~8(0~116psi) |
| Working temperature |
EPDM:-14~248ºF(-10~120ºC) |
| VMQ:-58~356ºF(-50~180ºC) |
| FPM:22~446ºF(-30~230ºC) |
| Other materials are avaible upon request |
| Sterilization temperature |
302ºF(150ºC,max 20min) |
| Outside surface treatment |
Ra16~32uin(o.4~0.8um) |
| Inside surface treatment |
Ra32~64uin(o.8~1.6um) |
| Connetion ends |
butt-weld,clamped ends,male ends, flange ends |
| Pneumatic head |
Normally closed(NC)-Air to open,spring to close |
| Normally open(NO)-Air to close,spring to open |
| Air to air(AA)-Air to open,air to close |
Options
1.The seat and gasket can be NBR (Nitrile), VMQ (Silicone) or Viton (FPM) all complying with FDA 21CFR177.2600.
2. End connection can be butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.
3.Handle: 3-position pull handle; multi-position handle in either pure stainless steel or with plastic cover.
4.Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.
5.Control: position sensor, C-top controller, C-top controller (AS-I)
Design Features
1.Various standards can be provided: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
2.Available in sizes from DN25 / 1" to DN300 / 12"
3.Multiposition handles can be used for valves up to DN100 / 4";
4.Pull handles can be used for valves from DN25 / 1" to DN300 / 12"
Manual handle,
5.pneumatic actuator and electric actuator are interchangeable.
6.Seals comply with FDA 21CFR 177. 2600.
7.The valve body can be customized with a wide selection of different connections.
We also supply sanitary butterfly valve, sanitary flow diversion valve, sanitary CPM valve, sanitary regulating control valve, sanitary diaphragm valve, sanitary ball valve, sanitary sampling valve, sanitary safety valve, sanitary pressure reducing valve,sanitary elbow, sanitary tee, sanitary reducers, sanitary unions, sanitary clamp, sanitary ferrule, sanitary pipe clamps,sanitary cleaning ball, sanitary sight glass, sanitary manway manhole cover, sanitary strainer, filters, and other sanitary pipe fittings....
