|Temperature Of Media:||Normal Temperature||Structure:||Ball|
|Packing:||Flexible Graphite||Valve Stem:||2Cr13,304,316|
|Valve Body:||A105,304,316A||Valve Disc:||A105+Cr Or 2Cr13 Nitriding,304 Spraying, 316 Spraying|

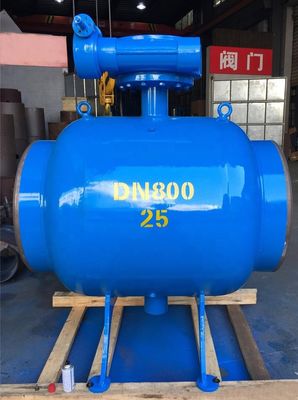

DN1200 Full Bore Ball Valve,
Fully Welded Trunnion Ball Valve For Gas,
DN1200 Fully Welded Trunnion Ball Valve

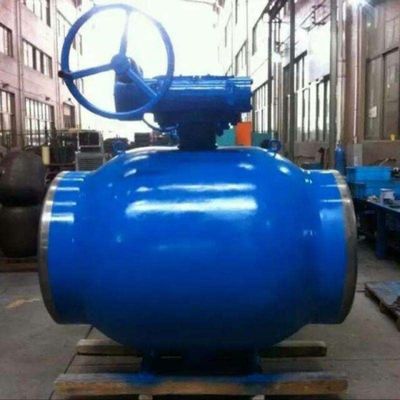

Directly Buried Fully Welded Ball Valve Wear Resistant With Turbine Head
Fully welded ball valve, no external leakage and other phenomena.

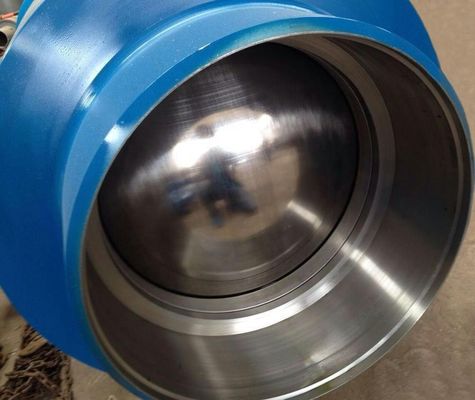

The processing of the sphere is tracked and tested by an advanced computer detector, so the processing accuracy of the sphere is high.
Because the material of the valve body is the same as the material of the pipeline, there will be no uneven stress, no deformation due to earthquakes and vehicles passing through the ground, and the pipeline is resistant to aging.
The sealing ring body is made of 25% Carbon (carbon) RPTFE material, which guarantees no leakage (0%).
Directly-buried welded ball valves can be buried directly in the ground, without the need to build tall and large valve wells, only small shallow wells need to be set up on the ground, greatly saving construction costs and engineering time.
According to the construction and design requirements of the pipeline, the length of the valve body and the height of the valve stem can be adjusted.
The processing accuracy of the sphere is very precise, the operation is light, and there is no bad interference.
Using high-grade raw materials, it can keep the pressure above PN25.
Compared with products of the same specifications in the same industry, the valve body is small and the appearance is beautiful.
In order to ensure the normal operation and use of the valve, the service life is more than 20 years.
1. If customers have special requirements for products, they must provide the following instructions in the order contract:
a. Structure length
b. Connection Type;
c. Nominal diameter
d. Product use medium and temperature and pressure range;
e. Testing, inspection standards and other requirements.
2. The factory can configure various driving devices according to customer specific requirements.
3. If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract on the condition that the supply and demand sides understand and agree.
4. For futures and ordering customers, please call the letter to tell the valve model, specifications, quantity, delivery time and place in detail. And advance payment of 30% of the total contract amount, the supplier is ready for production.

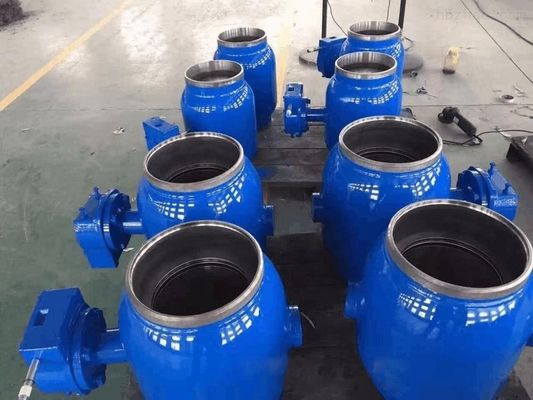

The all-welded ball valve is welded with a seamless steel tube. The entire valve is bolt-free and has no external leakage due to handling collisions and casting sand holes. It is lightweight and easy to transport and install. Because the seat is designed to be loaded by springs or butterfly springs, it is adaptable to changes in pressure and temperature, and does not create any leakage during the pressure and temperature range.
1.City gas: gas output pipelines, main lines and supply lines for various feeder lines.
2.Central heating: large heating equipment output pipeline, main line, branch line.
3.Heat exchanger: The pipeline and each circuit are opened and closed.
4.Steel plant: various fluid pipelines, exhaust gas selection pipelines, gas and heat supply pipelines, fuel supply pipelines.
5.Various industrial equipment: various heat treatment pipes, various industrial gas and heat pipes.
