Clamping Connection Max 600kPa AISI 316L Hygienic Sample Valves

Description
Materials: TP316L Stainless Steel Type: Sample Hygienic Valves
Connection Type: Weld Diameter: 1/2"-4"
Specifications: 3A ASME BPE MOQ: 1PC
High Light:

AISI 316L Hygienic Sample Valves

,

Clamping Connection Hygienic Sample Valves

,

Max 600kPa Hygienic Sample Valves

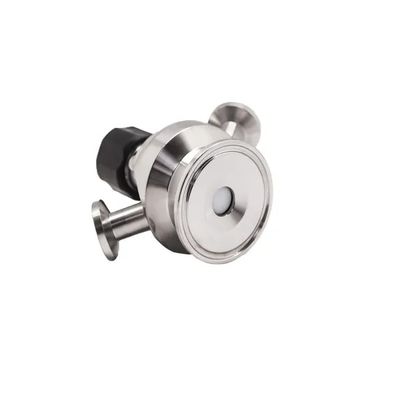

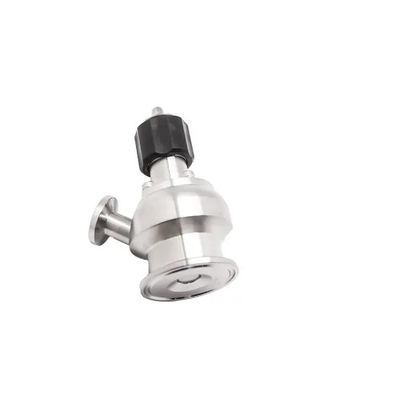

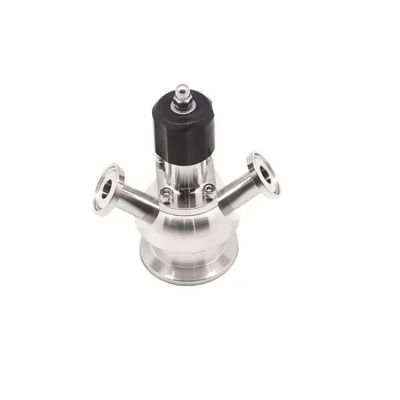

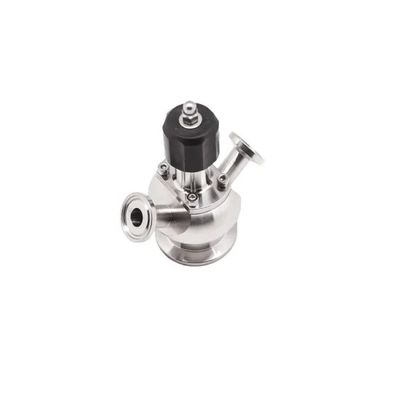

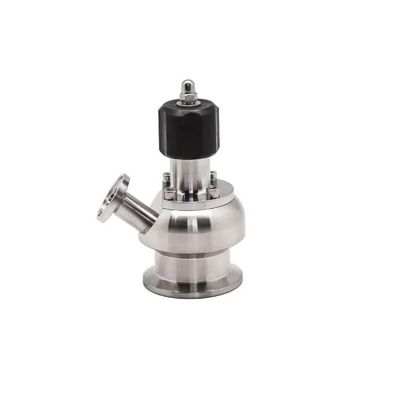

Stainless Steel Aseptic Sampling Valve with Clamping Connection



Sample valves are used in piping systems or on tanks for sampling. It can also be assembled at the bottom of the tank or pipeline for residue drain. These aseptic sampling valves are high-quality products. They can be used for dairy, pharmaceutical, beer, beverage, edible oil, and other industries to meet their professional requirements.



Sanitary sample valves and gauges have many advantages such as removable connection, simple structure, and easy maintenance;



Aseptic sampling valves and gauges are high-quality pieces to ensure the use of performance and service life;



Our sanitary valves can provide valve body and disc materials such as AISI 304 or AISI 316L, 304L and 316 materials, automated or manual operation valve according to your requests.





Specification:



Valve body AISI 316L
Handle AISI 304
Menbrane EPDM PTFE
Max. working pressure 600kPa (6bar)
Max. temperature 130 ºC (EPDM) 150 ºC (PTFE)
Connection thread, pipe welding, tank welding, clamp
Handle turning handle/removable key
Application scope beer, milk, beverage, fruit juice, pharmacy industries etc.
Packaging details standard exporting package
Delivery details usually within 20 days after receiving T/T down payment

Clamping Connection Max 600kPa AISI 316L Hygienic Sample Valves 0

Clamping Connection Max 600kPa AISI 316L Hygienic Sample Valves 1

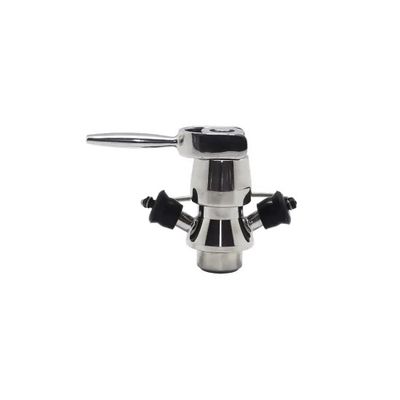

Open:Sampling - The manual valve is opened by rotating the handle(adjustable valve) or by activating the lever(on/off valve). The stem and membrane are then retracted, allowing liquid to pass.
Closed:Sterilizing - The built-in spring closes the valve and keeps the channel open between the hoses though reverse process in order to sterilize. If using by steam, a small pressure relief valve(optional) on the outlet is recommended.

Standard design: the aseptic sampling valve consists of three parts, a valve body, a handle and a membrane. The rubber membrane is placed on the stem of the valve and works as a stretchable plug.

Connection:Tread, pipe welding, tank welding, clamp.
Handle: Turning handle/ removeable key
Application: The aseptic sampling valve is applied to beer, milk, beverage, fruit juice, pharmacy industries etc.

Clamping Connection Max 600kPa AISI 316L Hygienic Sample Valves 2
