Product Details:
|
Flow Direction: | One Way | Size: | DN25-DN200 & 1''-8'' |
---|---|---|---|
Working Pressure: | 0-10 Bar | Air Pressure: | 0-6 Bar |
Working Temperature: | -10~+140℃ (PTFE/EPDM) | Connection: | Weld, Clamp, Thread, Union |
High Light: | Sanitary Tri Clamp Ball Valve,One Way Tri Clamp Ball Valve,DN25 Tri Clamp Ball Valve |

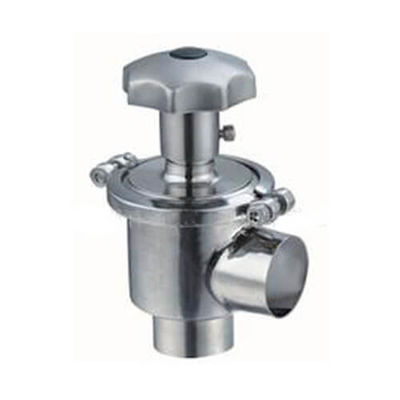

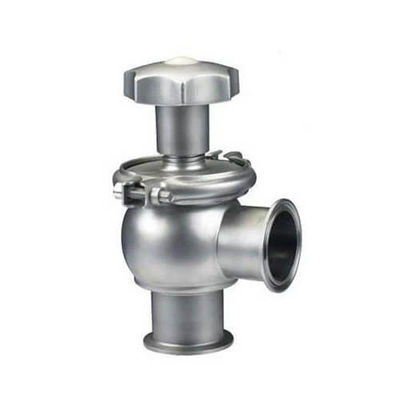

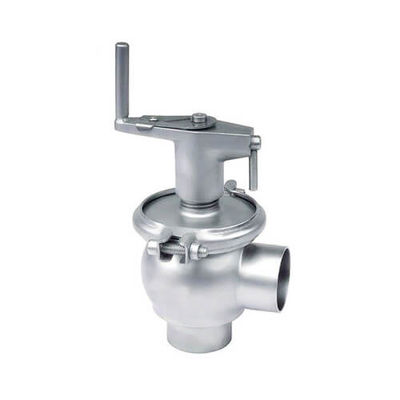

Hygienic Sanitary Manual Flow Regulating Valve Butt Weld / Tri Clamp Connection Ends
The sanitary regulating valve is a type of control valve to adjust flow rate and pressure of downstream mediums. Found in most sanitary production lines, these pressure regulators allow greatly improve safety and quality control.
Specification
Size: DN25-DN100 & 1''-4''
Flow Direction: One way
Working Pressure: 0-10 bar
Air Pressure: 0-6 bar
Working Temperature: -10~+140℃ (PTFE/EPDM)
Connection: Weld, clamp, thread, union
Standards: ISO, IDF, DIN, 3A, SMS
Product name | Stainless Steel Sanitary Food Grade Regulating Valve |
Application | Sanitary reguating valves are widely used to change the flow direction of the piping line. There are lots of different housing combinations to meet different applications. |
Materials Body | SS304,SS316L |
SIZE: | 1'' through 4 '', DN25-DN100 |
Standard: | DIN, SMS, 3A, ISO |
Connection end: | Welded, clamped,threaded or other requirement. |
Polish: | mirror, matt polished. |
Operating pressure: | 10bar |
Application:
The series of valve is major let the medium reach the purpose of reversing or end stop, because the goods tightness and cleanability, they are extensively use to different sanitary industry areas.
a. Working Principle
Manually set the valve opening degree to make a pressure drop to the medium passing through the valve, thus regulating the medium pressure, flow and temperature of pipeline system.
b. Configuration
c. Features
* Manual control if variables, and the valve is driven by the power of medium
* Compared with the ball valve, butterfly valve and other valves, it produces a more significant pressure drop.
* Among the valves of same caliber, our regulating valve has a higher KV valve
* Conical valve plug inside.
* Strong chrome plated turning knob
* Best EPDM sealing material, high temperature resistant, anti-corrossion
* Multiple choices of size, standards, models available
Standard Design :
Various standards of valves can be provided to clients: DIN, 3A, SMS, ISO/IDF, BS/RJT, ASME/BPE etc
The series of valve have two type valve, that is the cut-off type and reversing type, the cut-off type can made of two or three pipeline connector, the reversing valve can made of three to five pipeline connector, their variety full satisfied the needed of market.
We also supply sanitary butterfly valve, sanitary flow diversion valve, sanitary CPM valve, sanitary regulating control valve, sanitary diaphragm valve, sanitary ball valve, sanitary sampling valve, sanitary safety valve, sanitary pressure reducing valve
Any inquiry for our other sanitary products,pls kindly send email sales@sanitary-valves-fittings.com we will try our best to supporting you.
