|Valve Material:||Valve Material||Pressure:||PN16|
|Connection:||Wafer||Power:||Manual,pneumatic / Electric|

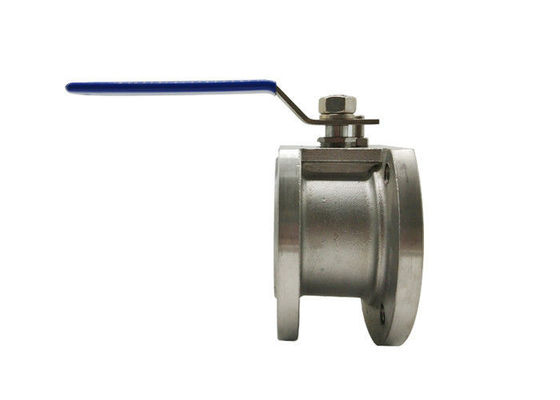

PN16 Wafer Flanged Ball Valve,
DIN Flanged End Ball Valve,
PN16 Flanged End Ball Valve
1pc Handle Wafer Flanged Ball Valve PTFE PPL Seat Italy Ball Valve Normal Pressure
WAFER BALL VALVE
wafer ball valves are ideally suited to applications where space is at a premium provide plus all the benefits of flanged ball valve while reducing the cost and weight. The valve can be installed between flanges with help of bolts.
Our wafer ball valve is normally one-piece design and floating ball type, and are available in both cast and forged construction in sizes ranging from DN15 to DN 100, in #150 to #900 pressure rating.
Italy Ball Valve
- Design and Manufacturing : GB / T12237 / 1989
- Connection : JB / T79
- Fireproof Test: GB / T13927 - 1992
- DN15 ~ DN200
- Contruction 1.6 ~ 4.0 MPa
- 20 °C ~ 350 °C
Wafer Type ball valves (or called “Italy Super Thin” Type ball valves) are used in the pipeline equipment in the condition of PN1.0~2.5MPa, working temperature of 29~180℃(sealing ring is RPTFE) or 29~180℃(sealing ring is PPL Polyphenylene), to achieve to cut off or connect the medium in the pipeline. The applicable medium, such as water, steamer, oil, Nitric Acid, Acetic Acid, Carbamide, or medium of oxidizability can be applied subject to difference valve material adopted.
Wafer Ball Valve can be widely used in petroleum, chemical, metallurgy, power station, light industry and other fields to automatically adjust or cut off oil, water, gas and pulp or fibrous fluid.
1. Blow out proof stem design
2. Full port design
3. ISO5211 direct mounting pad
4. Flange Standard:GB
5. Various sealing materials and carbon steel options
6. Wafer ball valve structure simple, small size, light weight.
Wafer ball valve
|Model No||Working Pressure
|Q71F-16Ti||1.6||Oxidizing Corrosive Medium|
|Q71F-25Ti||2.5||Oxidizing Corrosive Medium
