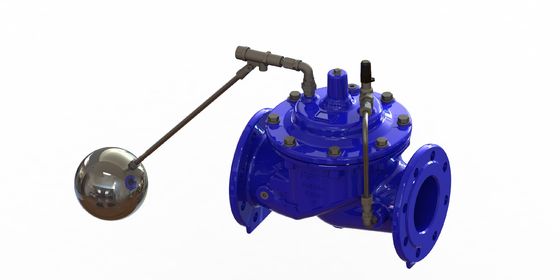

EN1074 5 Ductile Iron Float Control Valve For Modulating

Durable Stainless Steel Float Control Valve Ductile Iron Body With Blue Epoxy Coated

Product Description
This series of valve products are widely used for level control of the towers, pool and other facilities, high-rise building, living area and the water-supply systems. The upper cavity of the main valve is connected with the controlling floating ball valve. The floating ball valve is fixed on the liquid level of the water tank and will be opened, when the liquid level lowers, then the main valve is opened to supply water to the water tank; when the liquid level rises to the position where the floating ball valve stays at, the said valve is closed and so is the main valve, stopping the water supply.

A100 is a remote float control valve which consists of

1.Ductile iron main valve

2.Float control pilot-P100

3.Installed the complete valve set on the top of tank or main valve and pilot separate- remote control

4.On - off control set

5.When water level decrease the float drop , main valve open, water start to flow in

6.When float reaches high water level, close the main valve

A10B is a bi-level float control valve which consists of

1.Ductile iron main valve

2.Bi-level float control pilot-P10B

3.Installed full valve on the top of tank or main valve and pilot separate- remote control

4.On - off control set

5.Control water level in the tank

6.Valve open fully when float reaches the pre-set low water level-lower stop

7.Close when the float reaches the upper stop
