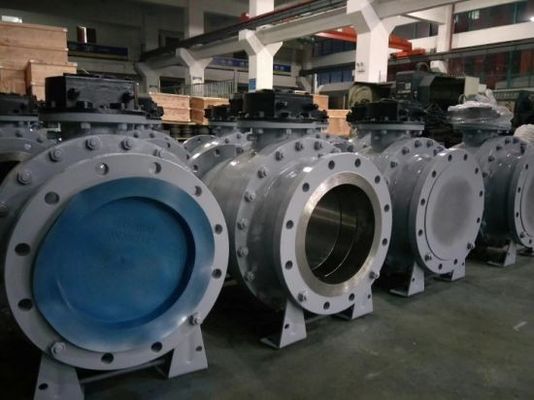

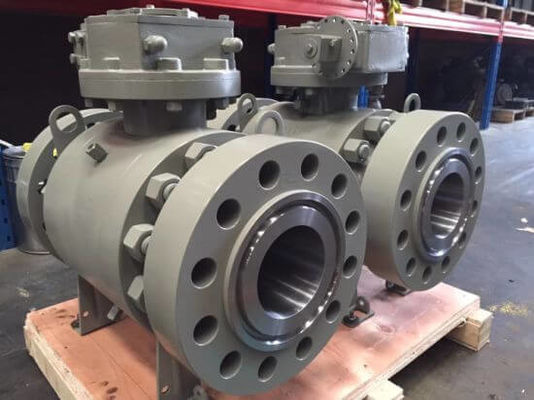

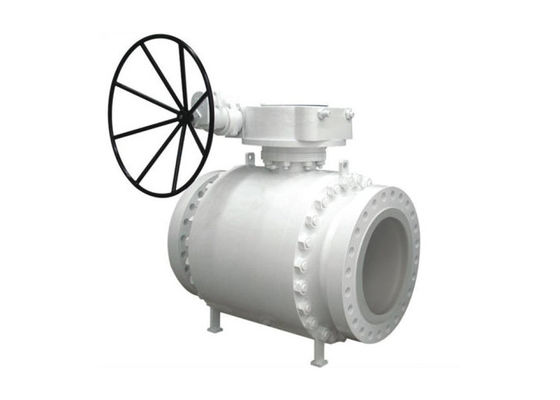

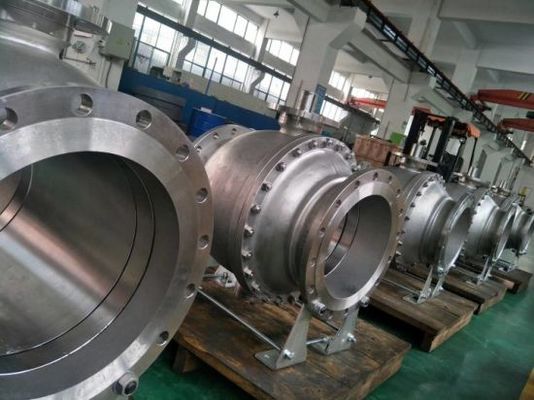

BS5351 Carbon Steel Turnnion Soft Seated Ball Valve

Soft Seated Industrial Turnnion Mounted Ball Valves

Trunnion mounted ball valves are quarter-turn valves used to stop the flow of medium in pipelines. These valves feature a round or spherical disk in the center that rotates to start or stop the flow. This disk is called a ball and it features a hollow center. Ball valves are extremely versatile and are commonly used in industrial applications where tight shut-off is required.

Trunnion mounted ball valves feature additional support for the ball. This support is in the shape of a shaft and is called a trunnion. The trunnion absorbs any added pressure from the flow, reducing stress on the ball and seats of the valve. Trunnion mounted ball valves are used in high-pressure, large scale applications where low operating torque is required.

Design Features

• Full port, 1/2"~6" (DN15~DN150)
• W.P. : CLASS 150-300
• W.T. : -20°C~200°C (-4°F~392°F)
• Investment casting
• Blow-out proof stem
• Silicone Free
• Anti-static device (option)
• Locking device
• Mounting pad ISO 5211
• Flange dimension: ASME B16.5
• Face to face: ASME B16.10

Material Selection for Ball Valves:

• Carbon Steel (A105-WCB, WCC)
• Low Temperture Carbon Steel (LF2-LCC, LCB)
• Stainless Steel (SS304, SS304L, SS316, SS316L, SS347, 904L)
• Low Alloys (F1-WC1, F11-WC6, F22-WC9)
• High Alloys (F5-C5, F9-C12,F91-C12A, F62-CN3MN, F20-Alloy 20 )
• Duplex & Super Duplex (2205-4A, 2507-5A, S32760-6A)
• Bronze (C95800, C95500, C95400)
• Inconel (Inconel 625, Inconel 825)
