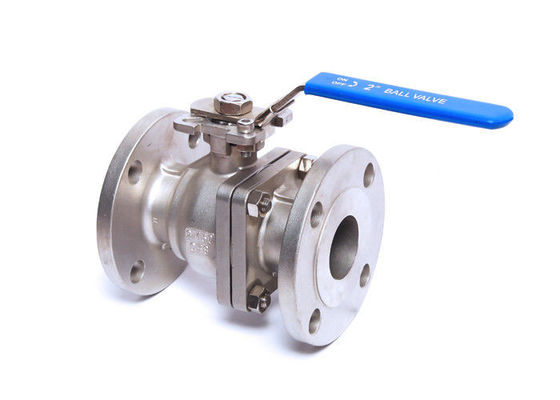

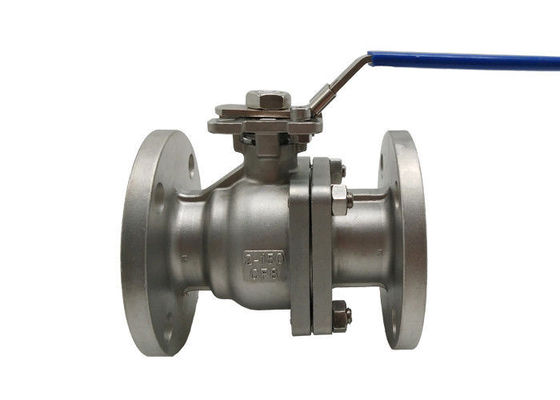

ANSI Standard 150LB CF8 Stainless Steel Flanged Ball Valve

Class 150LB CF8 Stainless Steel Flanged Ball Valve 2 Inch Operating By Handle

Specifications

stainless steel 2-piece full port ANSI 150# flanged ball valves are designed for general chemical and industrial applications. These investment cast valves offer low operating torque with quarter turn latch-locking handle. Removing handle allows for easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad. This insures precision shaft alignment and eliminates the need for additional brackets and couplings. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations. All valves are tested per API 598.

Full Port for Unrestricted Flow
316 Stainless Steel Body, Ball and Stem
Blow Out Proof Stem
RTFE Ball Seats Extend Cycle Life and Reduce Torque
Triple RTFE/Viton Stem Seal Design, Live Loaded
Latch Locking Handle (Padlockable)
Actuator Ready ISO5211 Direct Mounting Pad
Anti-Static Design

Briefly Introduction

The structure of the floating ball valve is floating. Under the action of the medium pressure, the ball can generate a certain displacement and press against the sealing surface at the outlet end to ensure the sealing of the outlet end.
The floating ball valve has a simple structure and good sealing performance, but the load of the ball subjected to the working medium is all transmitted to the outlet sealing ring, so it is necessary to consider whether the sealing ring material can withstand the working load of the spherical medium. This structure is widely used in medium and low pressure ball valves.

The Strength of Ball Valve

1. The fluid resistance is small, and the full-bore ball valve is nearly with no flow resistance.

2. Simple structure, small size and light weight.

3. It has two sealing faces, and the sealing surface material of the ball valve is widely used in various plastics, and has good sealing performance and can achieve complete sealing. It has also been widely used in vacuum systems.

Model Selection

2PC Full Port Floating Ball Valve
