Product Details:
Place of Origin: China
Brand Name: OEM
Certification: 3A,CE,ISO,FDA
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: Sample order acceptable
Price: Contact us for the best quote
Packaging Details: Wooden Boxed
Delivery Time: 1 to 2 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5,000pcs per month

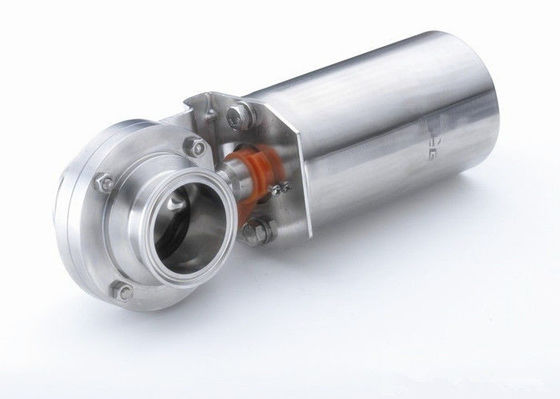

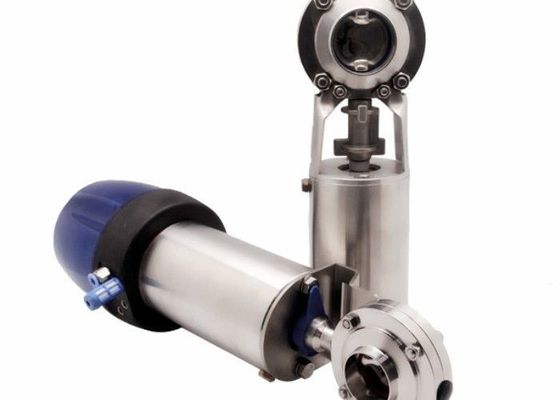

Welded Ends EPDM Seats 1/4" Tri Clamp Butterfly Valve

Description
Material: TP316L Size: 1/4'' - 4'
Connection Type: Welded Ends Alloy: T304 Or T316L
Standard: 3A ASME BPE Surface: Fine Turned Inside Up To Ra < 0,8 µm Others On Request
High Light:

Welded Ends Tri Clamp Butterfly Valve

,

EPDM Seats Tri Clamp Butterfly Valve

,

1/4" Tri Clamp Butterfly Valve

Tri Clamp End Sanitary Butterfly Valves 3/4"-4" For Shutting Off A Flow Of Liquid



ASME BPE and Sanitary Fittings


Sanitary ASME BPE fittings, SFF1 and SFF4 both buttweld and sanitary clamp


Sanitary buttweld and sanitary clamp fittings


Tube OD weld fittings


Stock sizes 1/4 inch through 4 inch


Sanitary fittings and tube up to 12 inch OD is available



Tolerances:


According to ASME BPE-2009



Valve line includes, ball, butterfly, check, seat, long stroke, mix proof, PMO, diaphragm and sampling. All valves can be supplied with a variety of actuation and control packages.



Sanitary pump line includes both centrifugal and positive displacement pumps.



Stainless Steel Sanitary Tubing and Tube Fittings Highlights:



Valve line includes, ball, butterfly, check, seat, long stroke, mix proof, PMO, diaphragm and sampling. All valves can be supplied with a variety of actuation and control packages.



Sanitary pump line includes both centrifugal and positive displacement pumps.



Alloy: T304 or T316L


Sizes: 1.50", 2.00", 3.00" OD


Seats: EPDM or Silicone


Finish: Polish to a 32 Ra ID/OD


Handle Interchanges to either side


Field Serviceable


100% Hydraulic Pressure Tested


Economical Price for all sizes from 1.5" -- 4"



Specifications:
Sizes available: 1/2" to 4" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4"); DN15 - DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100).


Material: Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.


Max. working pressure: 145psi (10bar) for DN25/1"-DN100/4"; 116psi (8bar) for DN125/5"-DN150/6"; 73psi (5bar) for DN200/8"-DN300/12".


Temperature range: 14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat.



Operation: 4-position pull handle as the product photo shows


End connections: thread / thread


Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.



Forged stainless steel 316L and 1.4404, Material certificate to EN10204 available.


Customized fabrication available.


Fast delivery to meet your needs well in time.


Package service with sanitary fittings – save time and cost.


Good experience for worldwide supplying.


Flexibility on order quantity and operation.


Pre-fabrication and assembling available.



Material :


1. Nylon 6 + reinforce glass fiber handle with SS 304 gripper bar and notch plate.


2. All SS 304 handle, gripper bar and notch plate.



Disc head size :


9.4 x 9.4mm, 12 x 8mm or 12 x 12mm available.


Feature :


* Precision and beautiful design.
* Easy operation and safe lock.
* Easy to put your logo marks on.



Welded Ends EPDM Seats 1/4" Tri Clamp Butterfly Valve 0
