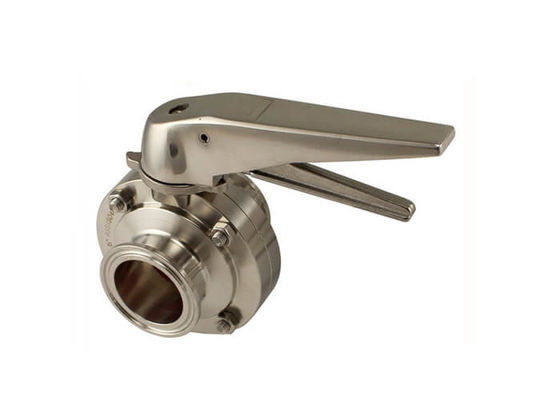

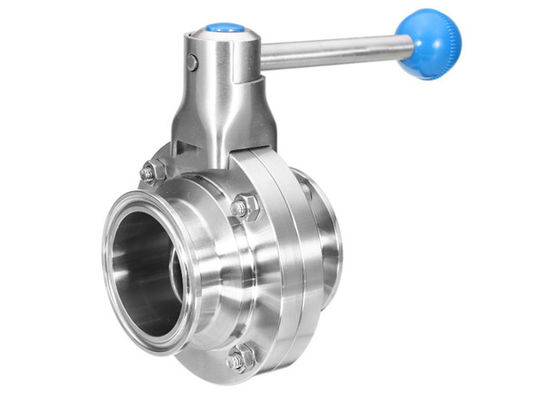

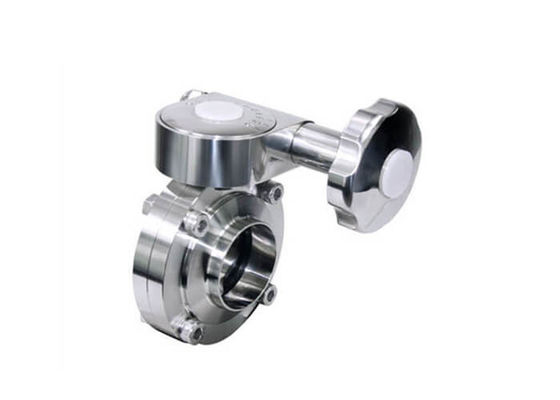

T304 1.5" Pneumatic Actuator Tri Clamp Butterfly Valve

Large Image : T304 1.5" Pneumatic Actuator Tri Clamp Butterfly Valve

Product Details:

Place of Origin:	China
Brand Name:	OEM
Certification:	3A,CE,ISO,FDA
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	Sample order acceptable
Price:	Contact us for the best quote
Packaging Details:	Wooden Boxed
Delivery Time:	1 to 2 weeks
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5,000pcs per month

Contact Now

T304 1.5" Pneumatic Actuator Tri Clamp Butterfly Valve

Description

Material:	AISI 304 316L	Size:	1/4'' - 4'
Connection Type:	Tri Clamp/Welded	Alloy:	T304 Or T316L
Standard:	3A ASME BPE	Seats:	EPDM Or Silicone
High Light:	T304 Pneumatic Operated Butterfly Valve , Pneumatic Actuator Tri Clamp Butterfly Valve , 1.5" Tri Clamp Butterfly Valve

SS Butterfly Valve With Pneumatic Actuator , 1.5 Inch Butterfly Valve For Petroleum

Typical Applications:

Hygienic Butterfly Valves are universal valves for isolation and control, in the food, dairy, brewing, pharmaceutical and beverage industries. These butterfly valves are designed to be easily automated with the SS Actuator, combined with the Easymind Electronic Control Top. Other automation options can also be made with other Pentair rack and pinion actuators upon special request.

Food & Beverage

Brewing, Distilling, and Wine Making

Dairy

Pharmaceuticals

Chemical Processing

Water Filtration

Textile Dyeing & Drying

Flavor and Fragrance

Ink & Paint

No.	Name of parts	Material
1	Screw	Stainless Steel 304
2	Left Valve	Stainless Steel 304,304L,316,316L
3	Seat	Food grade rubber
4	Butterfly Plate	Stainless Steel 304,304L,316,316L
5	Right Valve	Stainless Steel 304,304L,316,316L
6	Nut	Stainless Steel 304
7	Nut	Stainless Steel 304
8	Key	Stainless Steel 304
9	Screw	Stainless Steel 304
10	Connecting Yoke	Stainless Steel 304
11	Screw	Stainless Steel 304
12	Connecting set	Stainless Steel 304
13	Pneumatic Device	AT Pneumatic actuator series
14	Location indicator	Plastic


Material	AISI 304 / 304L (1.4301 / 1.4307) AISI 316L (1.4404) others on request
Size	DN10 – DN200 1" - 4"
Seal	Silicon / EPDM / FKM / HNBR
Surface	fine turned inside up to Ra < 0,8 µm others on request
Operating pressure	DN10 - DN150 max. 10 bar / 145 psi DN200 max. 6 bar / 87 psi

Quality Assurance:

1. Material Controlled & Machined Precisely.
2. Easily welded
3. Quickly fit up
4. High corrosion resistant
5. Long service life
6. Safety Stock System.
7. Well packaged
8. Fast delivered
9. Surface Finish: #180 Grit, #320 Grit

Chemical Compositions:

Elements	316L (wt%)
C / Max.	0.035
Mn / Max	2.00
P / Max	0.045
S / Max	0.005 - 0.017
Si / Max	1.00
Ni	10.00 - 14.00
Cr	16.00 - 18.00
Mo	N/A
Fe	Bal.
Cu	N/A
N	N/A

Mechanical Properties:

Grade	Tensile Strength (Mpa)	Yield Strength (Mpa)	Elongation (%)	Hardness (HRB)
316L	≥485	≥170	≥35	≤90
