Product Details:
Place of Origin: China
Brand Name: OEM
Certification: EN1074-5
Model Number: OEM
Payment & Shipping Terms:
Packaging Details: Plywood cases
Delivery Time: 15-60 days
Payment Terms: L/C, T/T
Supply Ability: Based on order

EN1074 5 Ductile Iron Float Control Valve For Modulating

Description
Material: Ductile Iron GJS500-7 Pilot Material: SS304
Standard: EN1074-5 Function: Modulating
Coating: EPOXY Diaphragm: Nylon Reinfocement With EPDM
High Light:

Ductile Iron Float Control Valve

,

EN1074 5 Float Control Valve

,

Float Control Valve For Modulating



Durable Stainless Steel Float Control Valve Ductile Iron Body With Blue Epoxy Coated





Product Description

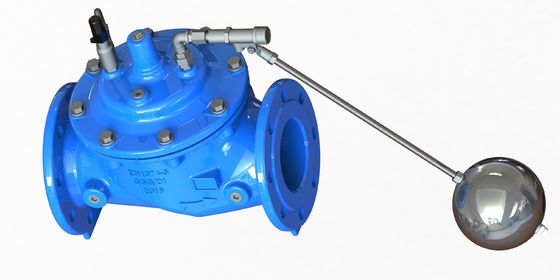

This series of valve products are widely used for level control of the towers, pool and other facilities, high-rise building, living area and the water-supply systems. The upper cavity of the main valve is connected with the controlling floating ball valve. The floating ball valve is fixed on the liquid level of the water tank and will be opened, when the liquid level lowers, then the main valve is opened to supply water to the water tank; when the liquid level rises to the position where the floating ball valve stays at, the said valve is closed and so is the main valve, stopping the water supply.





Name of parts
Material of parts
Product Name
Ductile iron float valve
Body & cap
Ductile iron
Valve seat & valve disc
Brass
Valve stem
Stainless steel
Spring
Stainless steel
Surface
EPOXY
Valve sealing
EPDM/NBR
Color
Common is Red/Blue, accept customize
Used
Water system







A100 is a remote float control valve which consists of

1.Ductile iron main valve

2.Float control pilot-P100

3.Installed the complete valve set on the top of tank or main valve and pilot separate- remote control

4.On - off control set

5.When water level decrease the float drop , main valve open, water start to flow in

6.When float reaches high water level, close the main valve





A10B is a bi-level float control valve which consists of

1.Ductile iron main valve

2.Bi-level float control pilot-P10B

3.Installed full valve on the top of tank or main valve and pilot separate- remote control

4.On - off control set

5.Control water level in the tank

6.Valve open fully when float reaches the pre-set low water level-lower stop

7.Close when the float reaches the upper stop
