Home ProductsCryogenic Ball Valve

DN100mm Flange Type Cryogenic Ball Valve For LO2

I'm Online Chat Now

DN100mm Flange Type Cryogenic Ball Valve For LO2

DN100mm Flange Type Cryogenic Ball Valve For LO2
DN100mm Flange Type Cryogenic Ball Valve For LO2 DN100mm Flange Type Cryogenic Ball Valve For LO2

Large Image :  DN100mm Flange Type Cryogenic Ball Valve For LO2

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE/ISO
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD268 per pc
Packaging Details: Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for valves are available
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 3000pcs per month

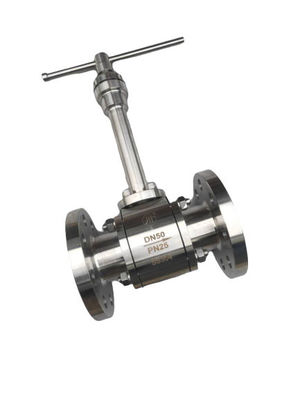

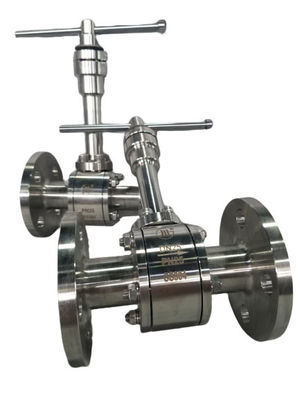

DN100mm Flange Type Cryogenic Ball Valve For LO2

Description
Power: Manual Material: Stainless Steel
Valve Type: Cryogenic Ball Valve Service: OEM
Pressure: Medium Pressure Media: LO2,LN2,LAr,LNG,etc
High Light:

Flange Type Cryogenic Ball Valve

,

DN100mm Cryogenic Ball Valve

,

LO2 cryogenic valve

PN25 DN15 to DN200 Flange Type Cryogenic Ball Valve for LO2 LNG

Cryogenic ball valves are floating ball valves suitable for low temperatures, down to ­100°C when equipped with Pentafite metal seats or down to ­196°C with soft seats.

They offer cutting­edge technical solutions in order to meet the maximum reliability, as evidenced by the positive results obtained from their application.


All cryogenic valves are equipped with cryogenic extension to allow valve operation.

Metal or polymeric seats are pre­loaded with springs on both sides of the valve to ensure a full bi­directionality and the automatic body cavity pressure relief.

All packings are made of expanded graphite to ensure their inalterability at any temperature.



Service



For your company to order valve products in our company, our factory makes the following commitments in terms of after-sales service:



1. Our company implements warranty on product quality;



2. After the contract is signed, guarantee the quality and quantity, and deliver on time;



3. The company ensures that the valve products provided meet the contract targets



4. For technical consultation of the demand side, give answers at any time;



5. When delivering the equipment, the factory delivers the following materials to the purchaser: delivery list, product certificate, product sample, product instruction manual, technical information;

After receiving a letter or a phone call from the user regarding quality issues, we guarantee a response within 24 hours to resolve the issue as quickly as possible



Our Product

Valve Type: Falange Type Ball Valve
Operated Type: Handwheel
Connection Type: Flange
Structure Type: Through Way Type
Nominal Diameter: DN10~100mm
Nominal Pressure: PN4.0MPa, PN2.5MPa
CL300
Material: Valve Body:ZGOCr18Ni9
Valve Bonnet:OCr18Ni9
Valve Stem:OCr18Ni9
Stuffing:PTFE
Disc seal ring:PCTFE
Suitable Medium: LO2,LN2,LAr,LNG,etc
Suitable Temparature: (-196℃~+80℃)
Design and Manufacture: Conform to GB/T24925-2010
Testing: Conform to GB/T13927-2008
Valve Lifetime: Specified according to usage frequency and installation location
Lead Time:

Customized valves are usually 30~45 days;

Stock valves are usually within 5 days.



DN100mm Flange Type Cryogenic Ball Valve For LO2 0

DN100mm Flange Type Cryogenic Ball Valve For LO2 1





Advantages



1. Excellent technology:

the technology is in the leading level in China, cooperate with the most famous

universities in China;



2. Advanced equipment:

advanced processing equipment and testing means, providing the integration of automation system solutions for product, engineering, service and training.



3. Strong team:

have many senior engineers with plenty of research, development, design

experience, providing professional service for sales and after sales.



4. Good quality:

reliable and stable quality, good performance, long life time.



5. Full series of products:

covers full category of valves, meet the general standard of every country in the world, such as GB, DIN, ASTM, BS, JIS.



6. Professional after sales service:

have the professional engineer team to provide the service.



7. Certificates:

passed the ISO9001 certificate as well as CE,ISOetc.



8. Fast delivery time:

have the stock, fast delivery time could be guarantee.



9. Packing:

packing strictly as per the exporting standard or as per the customized request.



10. Long-term quality warranty time:

provide 12 months quality warranty time.





FAQ







Q. How can I get some samples?

A. Usually we don’t offer free sample and express fee are required, the sample cost can be deducted from your first large order.

Q. What's the MOQ of your products?

A. Our MOQ is one (1) piece/set.

Q. Are you a manufacturer with your own factory?

A. Yes, we are the manufacturer for more than 8 years
