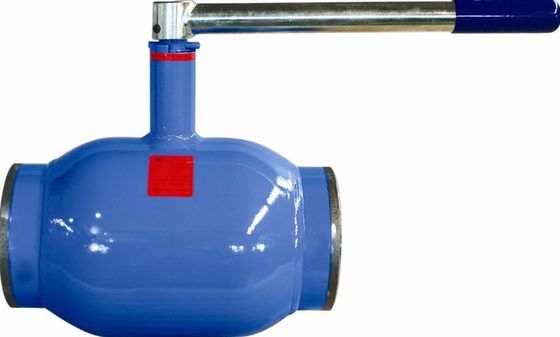

Api 598 Medium Pressure Explosion Proof Fully Welded Ball Valve

I'm Online Chat Now

Api 598 Medium Pressure Explosion Proof Fully Welded Ball Valve

Api 598 Medium Pressure Explosion Proof Fully Welded Ball Valve
Api 598 Medium Pressure Explosion Proof Fully Welded Ball Valve

Large Image :  Api 598 Medium Pressure Explosion Proof Fully Welded Ball Valve

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1 - 9 Sets
Price: $500.00 PER PC
Packaging Details: Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for ball valves are available
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 100 Set per Day

Api 598 Medium Pressure Explosion Proof Fully Welded Ball Valve

Description
Pressure: Medium Pressure Power: Manual
Structure: Ball Packing: Flexible Graphite
Valve Disc: A105+Cr Or 2Cr13 Nitriding,304 Spraying, 316 Spraying Working Temperature: ≤250℃
High Light:

Explosion Proof Fully Welded Ball Valve

,

Medium Pressure Fully Welded Ball Valve

,

Api 598 Fully Welded Ball Valve

Explosion Proof Trunnion Mounted Ball Valve Welded Connection Medium Pressure

Color Customization Welded Connection Trunnion Mounted Fully Welded Ball Valve



The fully welded trunnion ball valve has a fully welded body which eliminates any possible leakage through body joints hence it is quite suitable for long-distance pipeline transport of oil & gas or low-emission required toxic media as well as buried/ underground service. Generally, Metals Valve’s fully welded ball valves are furnished with butt welding(BW) ends, either soft or metal seated. Flanged end connections RF or RTJ are available upon request. If the valve is used for underground service, extended stem and bonnet will be provided. In order to avoid the heat effect during installation/ welding, extended welding ends can be furnished and post weld heat treatment(PWHT) shall be carefully implemented.



Product Description

Feature


1. The valve body is welded from steel pipes.



2. The ball pad uses reinforced polytetrafluoroethylene.



3. The valve stem adopts explosion-proof design.



4.Temperature range: -60-200 ℃



5. Drive mode: manual or turbine drive.



6.Testing standard: Api 598





Payment term:    T/T, Western Union, PayPal, L/C

Trade term:   FOB or CFR or CIF

Packing detail:  Wooden box, ply-wood box, carton box, pallet

Delivery time:
It depend on the purchasing quantity and the stock condition, if the warehouse have, we may arrange the delivery in several days, or a few days after receiving the deposit.





SERVCE:



In order to ensure your requirement for usage, please explain in detail in your order: type, specification, material, nominal pressure. working pressure and temperature used, maximum flow rate.
For the convenience usage of consumers, our company can provide flange and bolts completed with valve, and will provide wearing parts according to the requirement of consumers. In selection of product types. consumer can present his requirement for product materials, connection standard end technical data and give clear declaration in your contract.
Our company also can carry out study and development on new product according to the requirement of consumer.



  Valve Type:trunnion mounted ball valve
Connection Type: welding
Nominal Pressure:1.6MPa/2.5MPa/4.0MPa

Material:   Valve Body/Bonnet:A105,304,316A;
Valve Disc:A105+Cr or 2Cr13 nitriding,304 spraying,316 spraying;

Valve Stem:2Cr13,304,316;
Packig:flexible graphite.

Suitable Medium:water,steam,gas,etc
Suitable Temparature:(≤250℃)
Design and Manufacture:Conform to GB/T 12237
Testing:Conform to GB/T 26480

Valve Lifetime:Specified according to usage frequency

and installation location

Lead Time:Customized valves are usually 30~45 days;  Stock valves are usually within 5 days.





Valve Display

Api 598 Medium Pressure Explosion Proof Fully Welded Ball Valve 0



Api 598 Medium Pressure Explosion Proof Fully Welded Ball Valve 1



Api 598 Medium Pressure Explosion Proof Fully Welded Ball Valve 2





Valve Feature

Api 598 Medium Pressure Explosion Proof Fully Welded Ball Valve 3



The all-welded ball valve is welded with a seamless steel tube. The entire valve is bolt-free and has no external leakage due to handling collisions and casting sand holes. It is lightweight and easy to transport and install. Because the seat is designed to be loaded by springs or butterfly springs, it is adaptable to changes in pressure and temperature, and does not create any leakage during the pressure and temperature range.





Valve Specification

Api 598 Medium Pressure Explosion Proof Fully Welded Ball Valve 4



DN
1.6MPa/2.5MPa/4.0MPa
L
H
A
B
150
457
340
172
154
200
521
410
223
203
250
559
470
278
255
300
635
525
329
305
400
838
675
413
387
500
991
900
516
489
600
1143
1075
619
591
700
1346
1200
721
695
800
1524
1350
825
797
1000
1900
1800
1020
995
1200
2180
2100
1220
1195





Valve Application

1.City gas: gas output pipelines, main lines and supply lines for various feeder lines.
2.Central heating: large heating equipment output pipeline, main line, branch line.
3.Heat exchanger: The pipeline and each circuit are opened and closed.
4.Steel plant: various fluid pipelines, exhaust gas selection pipelines, gas and heat supply pipelines, fuel supply pipelines.
5.Various industrial equipment: various heat treatment pipes, various industrial gas and heat pipes.



Api 598 Medium Pressure Explosion Proof Fully Welded Ball Valve 5
