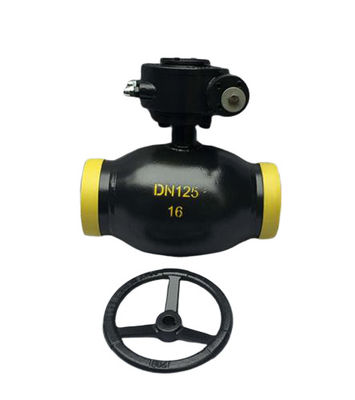

SW BW flange 10'' Port Fully Welded Floating Ball Valve

I'm Online Chat Now

SW BW flange 10'' Port Fully Welded Floating Ball Valve

SW BW flange 10'' Port Fully Welded Floating Ball Valve
SW BW flange 10'' Port Fully Welded Floating Ball Valve

Large Image :  SW BW flange 10'' Port Fully Welded Floating Ball Valve

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE/ISO
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD83 per pc
Packaging Details: Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for valves are available
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 3000pcs per month

SW BW flange 10'' Port Fully Welded Floating Ball Valve

Description
Power: Manual Structure: Ball
Port Size: 3/8''-10'' Connection: SW/BW/flange
Valve Color: Customer Request Pressure: Class150LB~Class400LB
High Light:

10'' Port Fully Welded Floating Ball Valve

,

Flange Fully Welded Floating Ball Valve

,

BW Fully Welded Floating Ball Valve

Industrial Gas Fully Welded Ball Valve Sw Bw Flange No External Leakage



WCB Color Customization Fully Welded Ball Valve for Gas OEM Available

Product Description

City gas: gas output pipelines, main lines, and branch supply pipelines.



Central heating: large-scale heating equipment output pipeline, main line, branch line.



Heat exchanger: the opening and closing of pipes and circuits.



Iron and steel plants: various fluid pipelines, exhaust gas pipelines, gas and heat supply pipelines, and fuel supply pipelines.



Various industrial equipment: various heat treatment pipelines, various industrial gas and heat pipelines.





Features:


Fully welded ball valve, no external leakage and other phenomena.


The processing of the sphere is tracked and tested by an advanced computer detector, so the processing accuracy of the sphere is high.


Because the material of the valve body is the same as the material of the pipeline, there will be no uneven stress, no deformation due to earthquakes and vehicles passing through the ground, and the pipeline is resistant to aging.


The sealing ring body is made of 25% Carbon (carbon) RPTFE material, which guarantees no leakage (0%).


Directly-buried welded ball valves can be buried directly in the ground, without the need to build tall and large valve wells, only small shallow wells need to be set up on the ground, greatly saving construction costs and engineering time.


According to the construction and design requirements of the pipeline, the length of the valve body and the height of the valve stem can be adjusted.


The processing accuracy of the sphere is very precise, the operation is light, and there is no bad interference.


Using high-grade raw materials, it can keep the pressure above PN25.


Compared with products of the same specifications in the same industry, the valve body is small and the appearance is beautiful.


In order to ensure the normal operation and use of the valve, the service life is more than 20 years.



SW BW flange 10'' Port Fully Welded Floating Ball Valve 0





SERVCE:



In order to ensure your requirement for usage, please explain in detail in your order: type, specification, material, nominal pressure. working pressure and temperature used, maximum flow rate.
For the convenience usage of consumers, our company can provide flange and bolts completed with valve, and will provide wearing parts according to the requirement of consumers. In selection of product types. consumer can present his requirement for product materials, connection standard end technical data and give clear declaration in your contract.
Our company also can carry out study and development on new product according to the requirement of consumer.

  Valve Type:trunnion mounted ball valve
Connection Type: welding
Nominal Pressure:1.6MPa/2.5MPa/4.0MPa

Material: Valve Body/Bonnet:A105,304,316A;
Valve Disc:A105+Cr or 2Cr13 nitriding,304 spraying,316 spraying;

Valve Stem:2Cr13,304,316;
Packig:flexible graphite.

Suitable Medium:water,steam,gas,etc
Suitable Temparature:(≤250℃)
Design and Manufacture:Conform to GB/T 12237
Testing:Conform to GB/T 26480

Valve Lifetime:Specified according to usage frequency

and installation location

Lead Time:Customized valves are usually 30~45 days; Stock valves are usually within 5 days.



Valve Feature

SW BW flange 10'' Port Fully Welded Floating Ball Valve 1



The all-welded ball valve is welded with a seamless steel tube. The entire valve is bolt-free and has no external leakage due to handling collisions and casting sand holes. It is lightweight and easy to transport and install. Because the seat is designed to be loaded by springs or butterfly springs, it is adaptable to changes in pressure and temperature, and does not create any leakage during the pressure and temperature range.





Valve Specification

SW BW flange 10'' Port Fully Welded Floating Ball Valve 2



DN
1.6MPa/2.5MPa/4.0MPa
L
H
A
B
150
457
340
172
154
200
521
410
223
203
250
559
470
278
255
300
635
525
329
305
400
838
675
413
387
500
991
900
516
489
600
1143
1075
619
591
700
1346
1200
721
695
800
1524
1350
825
797
1000
1900
1800
1020
995
1200
2180
2100
1220
1195





FAQ



Q. Are there any special requirements for OEM purchases?
A. Yes. Liangchuan requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.

Q. Do Liangchuan products come with a warranty ?
A. Yes. That's why we offer 3-year product life guarantee, and a generous1 year warranty on all purchases that begins with the bill of loading.

Q. How can I get some samples?

A. Usually we don’t offer free sample and express fee are required, the sample cost can be deducted from your first large order.

Q. What's the MOQ of your products?

A. Our MOQ is one (1) piece/set.

Q. Are you a manufacturer with your own factory?

A. Yes, we are the manufacturer for more than 8 years
