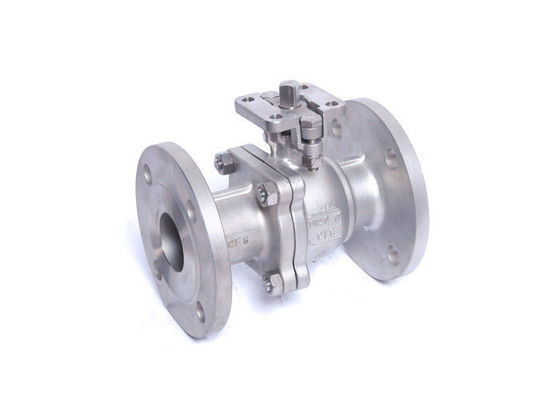

DN200 Flange Type Ball Valve , Floating ISO 5211 Ball Valve

I'm Online Chat Now

DN200 Flange Type Ball Valve , Floating ISO 5211 Ball Valve

DN200 Flange Type Ball Valve , Floating ISO 5211 Ball Valve
DN200 Flange Type Ball Valve , Floating ISO 5211 Ball Valve DN200 Flange Type Ball Valve , Floating ISO 5211 Ball Valve

Large Image :  DN200 Flange Type Ball Valve , Floating ISO 5211 Ball Valve

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: API ISO Ts CE
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 7-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000PCS/Mouth

DN200 Flange Type Ball Valve , Floating ISO 5211 Ball Valve

Description
Valve Type: Floating Connection: Flange
Size: DN15~DN200 Standard: ANSI/JIS/DIN
Pressure: PN16/PN25/PN40 Medium: Water Oil Gas
High Light:

DN200 Flange Type Ball Valve

,

Floating ISO 5211 Ball Valve

,

DN200 ISO 5211 Ball Valve

Electric Actuator Direct Mounting SS Ball Valve Flange Type Nominal Size DN50 ~ DN200



Application



The ball valve is mainly used in the pipeline to cut, distribute and change the flow direction of the medium.



Advantage

1. The thrust bearing reduces the friction torque of the valve stem, which makes the valve stem smooth and flexible for long-term operation.


2. Anti-static function: a spring is arranged between the ball, the valve stem and the valve body, and the static electricity generated during the switching process can be derived.


3. Since the material such as polytetrafluoroethylene has good self-lubricating property and the friction loss with the sphere is small, the service life of the pneumatic ball valve is long.



Specifications



Ball Valve

Applicable Standards:
- Design and Manufacturing:GB12237-89

- Connection:JB/T79

- Fireproof Test: API607 4th 1993

- Test and Inspection:GB/T13927-1992



Size Range:


- DN15~DN200

Pressure Rating:
- GB PN16 PN25 PN40
Temperature Range:
- -20°C~185°C



Ball valve, the opening and closing member (sphere) is driven by the valve stem and rotates around the axis of the ball valve. It can also be used for fluid regulation and control. The hard-sealed V-ball valve has a strong shear force between the V-shaped core and the metal seat of the hard-welded carbide alloy. It is especially suitable for fiber-containing, micro-solid particles. Etc. The multi-way ball valve not only can flexibly control the confluence, splitting, and flow direction switching of the medium, but also can close any channel and connect the other two channels.



PN(Mpa) DN L φE φB φC T f N-φh H H1 W M P A1 A2 B1 B2
1.6 15 130 95 65 45 14 2 4-14 48 79 135 9 9 6 6 36 42
20 140 105 75 55 14 2 4-14 53 84 135 9 9 6 6 36 42
25 150 115 85 65 14 2 4-14 64 95 170 11 11 6 7 42 50
32 165 135 100 78 16 2 4-18 71 103 170 11 11 6 7 42 50
40 180 145 110 85 16 3 4-18 76 111 200 14 14 7 9 50 70
50 200 160 125 100 16 3 4-18 85 120 200 14 14 7 9 50 70
65 Contact us freely
80
100
125
150
200



Model Selection



2PC Full Port Floating Ball Valve

Standard ANSI GB JIS DIN
Pressure 150LB/300LB PN25/PN40 10K/20K PN16/PN25/PN40
Matreial 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB
Model 1) High Platform Model 2) Handle Model
