DIN Standard 20K SS316 Flange End Ball Valve For Solvent

I'm Online Chat Now

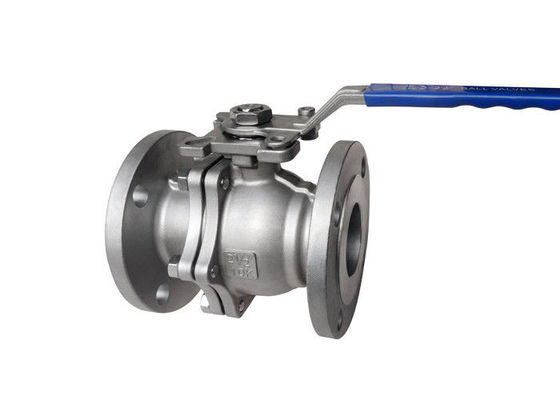

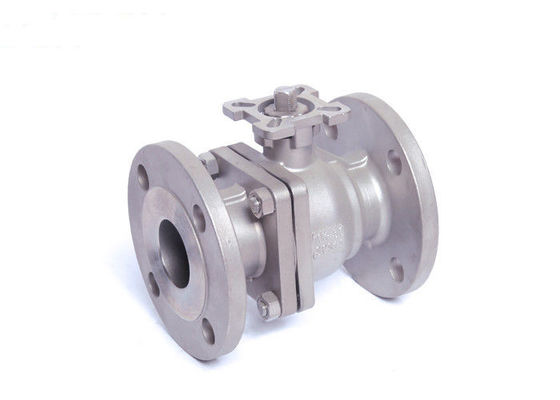

DIN Standard 20K SS316 Flange End Ball Valve For Solvent

DIN Standard 20K SS316 Flange End Ball Valve For Solvent
DIN Standard 20K SS316 Flange End Ball Valve For Solvent DIN Standard 20K SS316 Flange End Ball Valve For Solvent

Large Image :  DIN Standard 20K SS316 Flange End Ball Valve For Solvent

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: API ISO Ts CE
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 7-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000PCS/Mouth

DIN Standard 20K SS316 Flange End Ball Valve For Solvent

Description
Body Material: SS304 SS316 Ball Material: CF8,CF8M
Seat Material: PTFE Standard: GB,ANSI,JIS,DIN
Size: DN15 ~ DN200 Pressure: 10K 20K
High Light:

SS316 Flange End Ball Valve

,

20K Flange End Ball Valve

,

DIN Standard Flange End Ball Valve

JIS 20K 2PC Cast Steel Ball Valve ISO5211 Direct Mounting Pad for Motor



Specifications



Ball Valve

Applicable Standards:
- Design and Manufacturing : ASME B16 . 34 , API608

- Connection : JIS B2212 ~ B213

- Test and Inspection : JIS B2003 , API6D

- Face to Face Dimension : JIS B2002

Size Range:
- DN15 ~ DN200

Pressure Rating:
- JIS 10K 20K
Temperature Range:
- - 20 °C ~ 185 °C



The ball valve opening and closing part (ball) is driven by the valve stem and rotates around the axis of the valve stem. It is mainly used to cut off or turn on the medium in the pipeline, and can also be used for fluid regulation and control. The utility model has the advantages of compact structure, reliable sealing, simple structure and convenient maintenance, and the sealing surface and the spherical surface are often in a closed state, which is not easily eroded by the medium, and is easy to operate and maintain.



Pressure Size φD L φE φB φC T f N-φh H H1 W M P A1 A2 B1 B2
JIS 10K 15 15 108 95 70 52 12 1 4-15 48 79 135 9 9 6 6 36 42
20 20 117 100 75 58 14 1 4-15 53 84 135 9 9 6 6 36 42
25 25 127 125 90 70 14 1 4-19 64 95 170 11 11 6 7 42 50
32 32 140 135 100 80 16 2 4-19 71 103 170 11 11 6 7 42 50
40 38 165 140 105 85 16 2 4-19 76 111 200 14 14 7 9 50 70
50 50 178 155 120 100 16 2 4-19 85 120 200 14 14 7 9 50 70
65 Contact us freely
80
100
125
150
200


Application



Suitable for general working media such as water, solvent, acid and natural gas, but also suitable for medium with harsh working conditions, such as oxygen, hydrogen peroxide, methane and ethylene, which are widely used in various industries.



Strength



1. The fluid resistance is small: the cross section of the connecting pipe between the sphere and the valve body is equal, and the spherical passage is connected by a circular arc, and the medium passes through the sphere, and the fluid resistance is small.
2. Good sealing performance: The valve seat adopts PTFE material with certain elastic deformation and high strength, which achieves good sealing performance and ensures the stability of the valve.
3. Long service life: the valve core and the light seeing the neck material are made of Austenitic stainless steel, and the valve seat material is made of PTFE, which can achieve good corrosion resistance and prolong the service life of the valve.



Model Selection



2PC Full Port Floating Ball Valve

Standard ANSI GB JIS DIN
Pressure 150LB/300LB PN16/PN25/PN40 10K/20K PN16/PN40
Matreial 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB
Model 1) High Platform Model 2) Handle Model
